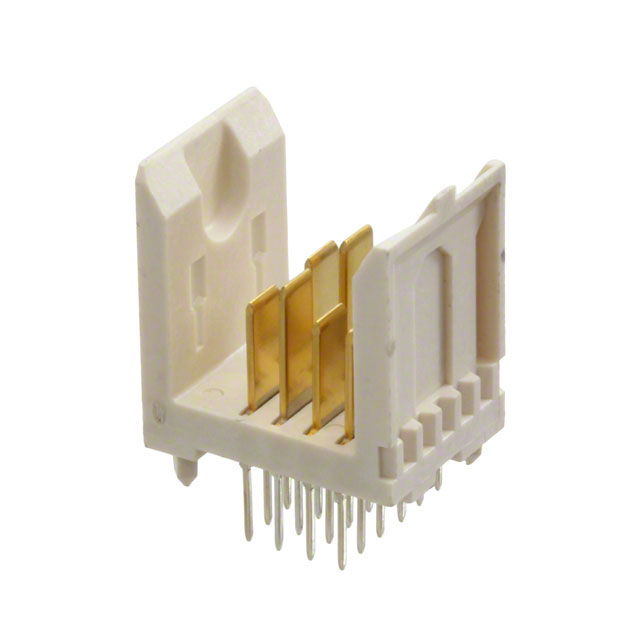

536627-1
Or copy the link below:
- Mfr.Part #
- 536627-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 8POS PCB
- Stock
- 39,729
- In Stock ：
- 39,729
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Lead Pitch :
- 2mm
- PCB Contact Pattern :
- RECTANGULAR
- Contact Pattern :
- RECTANGULAR
- DIN Conformance :
- No
- Durability :
- 250 Cycles
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- Vertical
- Insulation Resistance :
- 100000000Ohm
- Connector Type :
- Header, Male Blades
- Voltage - Rated AC :
- 30V
- Number of Positions Loaded :
- All
- RoHS Status :
- Non-RoHS Compliant
- Housing Material :
- Polymer
- IEC Conformance :
- No
- Pbfree Code :
- No
- Published :
- 2011
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Contact Material :
- Bronze
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 4
- ECCN Code :
- EAR99
- Insertion Force-Max :
- 2.3352 N
- Color :
- Natural
- Gender :
- Male
- Length - Termination :
- 0.167 inch
- Polarization Key :
- POLARIZED HOUSING
- Filter Feature :
- No
- Mating Contact Row Spacing :
- 0.079 inch
- Number of Conductors :
- ONE
- Body/Shell Style :
- Receptacle
- Voltage - Rated :
- 30V
- Contact Style :
- BLADE PIN-SKT
- Connector Style :
- Futurebus
- Lead Free :
- Lead Free
- Contact Resistance :
- 10MOhm
- PCB Contact Row Spacing :
- 2.0066 mm
- Feature :
- Board Guide
- Total Number of Contacts :
- 8
- Number Of PCB Rows :
- 4
- Mounting Type :
- Through Hole
- Reference Standard :
- UL, CSA
- Make First / Break Last :
- No
- ELV :
- Compliant
- Operating Temperature :
- -55°C~125°C
- Body Depth :
- 0.669 inch
- Rated Current (Signal) :
- 3A
- Contact Finish Thickness :
- Flash
- MIL Conformance :
- No
- Number of Power Positions :
- 8
- Series :
- Z-PACK
- Pitch :
- 0.236 6.00mm
- Plating Thickness :
- 31μin
- Reliability :
- COMMERCIAL
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Layout, Typical :
- 8 Power
- Body Breadth :
- 0.622 inch
- Contact Finish :
- Gold
- Mixed Contacts :
- No
- Datasheets
- 536627-1
Z-PACK Series Header, Male Blades Solder Gold Natural Flash Pitch: 0.236 6.00mm -55°C~125°C Tube Through Hole
536627-1 Overview
This product is packaged in a Header, Male Blades box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Z-PACK Series.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
536627-1 Features
Z-PACK series
536627-1 Applications
There are a lot of TE Connectivity AMP Connectors
536627-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
