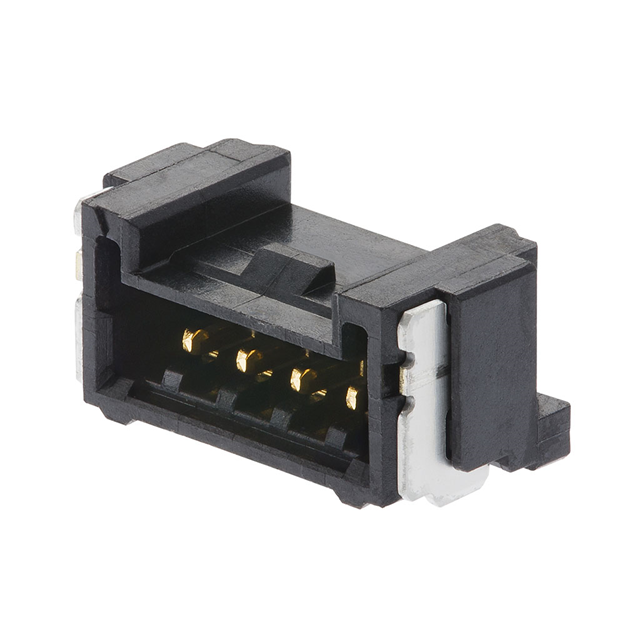

5054483691
Or copy the link below:
- Mfr.Part #
- 5054483691
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.25WB DL RA ASSY 36CKT BK G010
- Stock
- 877
- In Stock ：
- 877
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- -
- Type :
- SHROUDED
- Number of Positions Loaded :
- All
- Ingress Protection :
- -
- Series :
- 505448
- Contact Length - Post :
- -
- Overall Contact Length :
- -
- Insulation Height :
- 0.352 (8.95mm)
- Contact Material :
- Brass
- Application :
- Signal, Wire-to-Board
- Number of Rows :
- 2 Row
- Contact Finish Thickness - Mating :
- 3.94µin (0.100µm)
- Insulation Material :
- Polyamide (PA), Nylon
- Mounting Angle :
- RIGHT ANGLE
- Mounting Style :
- SMD/SMT
- Contact Plating :
- Gold
- Applications :
- General Purpose, Industrial, Lighting
- Shrouding :
- Shrouded - 4 Wall
- Orientation :
- RIGHT ANGLE
- Operating Temperature :
- -40°C ~ 105°C
- Contact Finish - Post :
- Gold
- Pitch - Mating :
- 0.049 (1.25mm)
- Pitch :
- 1.25 mm
- Contact Type :
- Male Pin
- Termination :
- Solder
- Product :
- Headers
- Features :
- Pick and Place, Solder Retention
- Insulation Color :
- Black
- Contact Finish - Mating :
- Gold
- Base Product Number :
- 505448
- Fastening Type :
- Latch Holder
- Current Rating (Amps) :
- Varies by Wire Gauge
- Connector Type :
- Header
- Voltage Rating :
- 50 VAC/DC
- Mounting Type :
- Surface Mount, Right Angle
- Mated Stacking Heights :
- -
- Style :
- Board to Cable/Wire
- Stackable :
- No
- Termination Style :
- Solder
- Contact Gender :
- Pin (Male)
- Current Rating :
- 1.5 A
- RoHS :
- Details
- Contact Length - Mating :
- -
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Contact Shape :
- Square
- Maximum Operating Temperature :
- + 105 C
- Number of Positions :
- 36 Position
- Contact Finish Thickness - Post :
- 3.94µin (0.100µm)
- Material Flammability Rating :
- UL94 V-0
- Product Status :
- Active
- Minimum Operating Temperature :
- - 40 C
- Datasheets
- 5054483691
5054483691 Documents
2 Row Rows Header 36 Position Positions Surface Mount, Right Angle Male Pin 505448
505448-3691 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.The product is a member of the 505448 Series.
