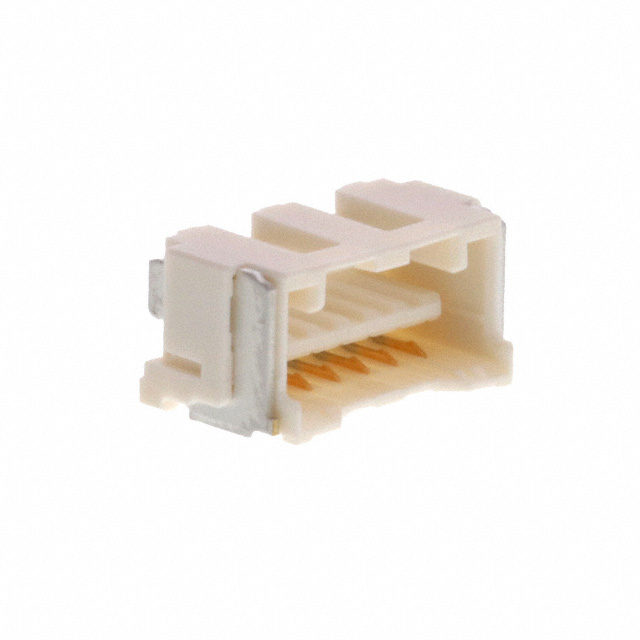

5054050670
Or copy the link below:
- Mfr.Part #
- 5054050670
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS 0.059 GOLD SMD
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Resistance :
- 500000000Ohm
- Operating Temperature :
- -40°C~105°C
- Contact Finish - Mating :
- Gold
- Packaging :
- Tape and Reel (TR)
- Pitch - Mating :
- 0.059 1.50mm
- Body Depth :
- 0.287 inch
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions :
- 6
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Gender :
- FEMALE
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.285 7.25mm
- Number of Rows :
- 1
- Applications :
- Automotive, General Purpose, Industrial, Lighting, Medical
- Series :
- CLIK-Mate 505405
- Voltage - Rated :
- 100V
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- Varies by WireGAuge
- Factory Lead Time :
- 13 Weeks
- Connector Type :
- Receptacle
- Total Number of Contacts :
- 6
- Number Of PCB Rows :
- 1
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL
- Contact Type :
- Forked
- Body Breadth :
- 0.25 inch
- Contact Resistance :
- 20mOhm
- Number of Conductors :
- ONE
- Published :
- 2015
- Insulation Material :
- Resin
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 7.87μin
- Fastening Type :
- Latch Holder
- Mounting Option 1 :
- LOCKING
- Contact Material :
- COPPER ALLOY
- Body Length or Diameter :
- 0.524 inch
- Insulation Color :
- Beige
- Mounting Type :
- Surface Mount
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Mating Contact Pitch :
- 0.059 inch
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Solder Retention
- Datasheets
- 5054050670
1 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Resin 6 Positions Forked
5054050670 Overview
Packaging is in the form of Receptacle.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the CLIK-Mate 505405 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial, Lighting, Medical.Several benefits come from the Solder Retention feature.Devices operate at -40°C~105°C operating temperatures.
5054050670 Features
CLIK-Mate 505405 series
5054050670 Applications
There are a lot of Molex
5054050670 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
