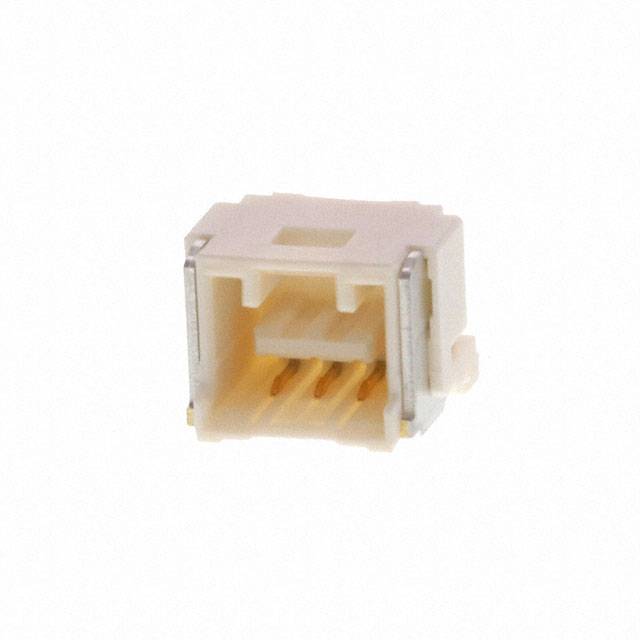

5054050370
Or copy the link below:
- Mfr.Part #
- 5054050370
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS 0.059 GOLD SMD
- Stock
- 41,795
- In Stock ：
- 41,795
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Resistance :
- 20mOhm
- Contact Material :
- COPPER ALLOY
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.059 1.50mm
- Insulation Material :
- Resin
- Feature :
- Solder Retention
- Applications :
- Automotive, General Purpose, Industrial, Lighting, Medical
- Number of Positions :
- 3
- Body Breadth :
- 0.25 inch
- Fastening Type :
- Latch Holder
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 1
- JESD-609 Code :
- e3
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 100V
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Tape and Reel (TR)
- Insulation Resistance :
- 500000000Ohm
- Published :
- 2015
- Body Depth :
- 0.287 inch
- Reference Standard :
- UL
- Mounting Option 1 :
- LOCKING
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Finish - Mating :
- Gold
- Mating Contact Pitch :
- 0.059 inch
- Style :
- Board to Cable/Wire
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.285 7.25mm
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 13 Weeks
- Total Number of Contacts :
- 3
- Insulation Color :
- Beige
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Mounting Type :
- Surface Mount
- Current Rating (Amps) :
- Varies by WireGAuge
- Connector Type :
- Receptacle
- Plating Thickness :
- 7.87μin
- Contact Type :
- Forked
- Series :
- CLIK-Mate 505405
- Number of Positions Loaded :
- All
- Contact Gender :
- FEMALE
- Number of Rows :
- 1
- Datasheets
- 5054050370
5054050370 Documents
1 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Resin 3 Positions Forked
5054050370 Overview
It comes in Receptacle packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the CLIK-Mate 505405 Series of products.Automotive, General Purpose, Industrial, Lighting, Medical is a possible application for the device.Its Solder Retention feature renders it more powerful in many ways.The device runs in -40°C~105°C Operating Temperature.
5054050370 Features
CLIK-Mate 505405 series
5054050370 Applications
There are a lot of Molex
5054050370 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
