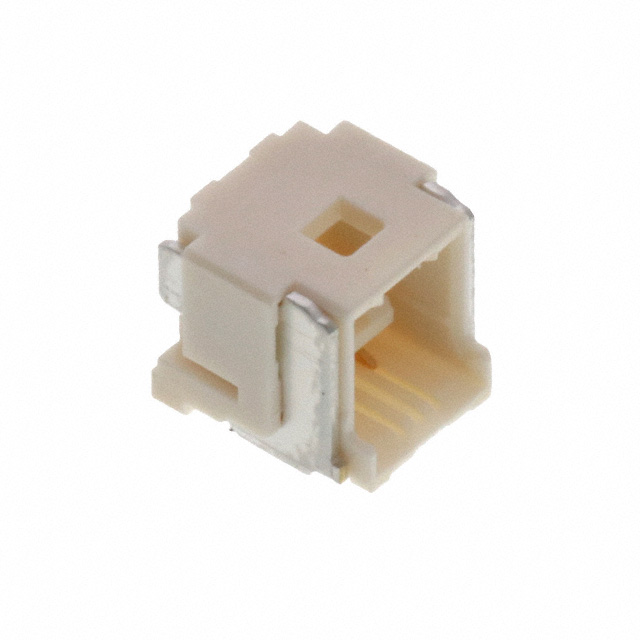

5054050270
Or copy the link below:
- Mfr.Part #
- 5054050270
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS 0.059 GOLD SMD
- Stock
- 3,487
- In Stock ：
- 3,487
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Positions Loaded :
- All
- Packaging :
- Tape and Reel (TR)
- Connector Type :
- Receptacle
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Published :
- 2015
- Insulation Material :
- Resin
- Plating Thickness :
- 7.87μin
- Fastening Type :
- Latch Holder
- Contact Finish - Post :
- Tin
- Operating Temperature :
- -40°C~105°C
- Total Number of Contacts :
- 2
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 500000000Ohm
- Reference Standard :
- UL
- Contact Type :
- Forked
- Number of Rows :
- 1
- Insulation Color :
- Beige
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Factory Lead Time :
- 13 Weeks
- Mating Contact Pitch :
- 0.059 inch
- Voltage - Rated :
- 100V
- Pitch - Mating :
- 0.059 1.50mm
- Number Of PCB Rows :
- 1
- Feature :
- Solder Retention
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Height :
- 0.285 7.25mm
- Series :
- CLIK-Mate 505405
- Applications :
- Automotive, General Purpose, Industrial, Lighting, Medical
- Mounting Option 1 :
- LOCKING
- Number of Positions :
- 2
- Mounting Type :
- Surface Mount
- PCB Contact Pattern :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- ECCN Code :
- EAR99
- Contact Material :
- COPPER ALLOY
- Contact Gender :
- FEMALE
- HTS Code :
- 8536.69.40.40
- Contact Finish - Mating :
- Gold
- Datasheets
- 5054050270
5054050270 Documents
1 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Resin 2 Positions Forked
5054050270 Overview
The product is packaged in Receptacle.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the CLIK-Mate 505405 Series.The device could be used for the following application: Automotive, General Purpose, Industrial, Lighting, Medical.There are a number of advantages to its Solder Retention feature.As a result, the device runs at -40°C~105°C Operating Temperature.
5054050270 Features
CLIK-Mate 505405 series
5054050270 Applications
There are a lot of Molex
5054050270 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
