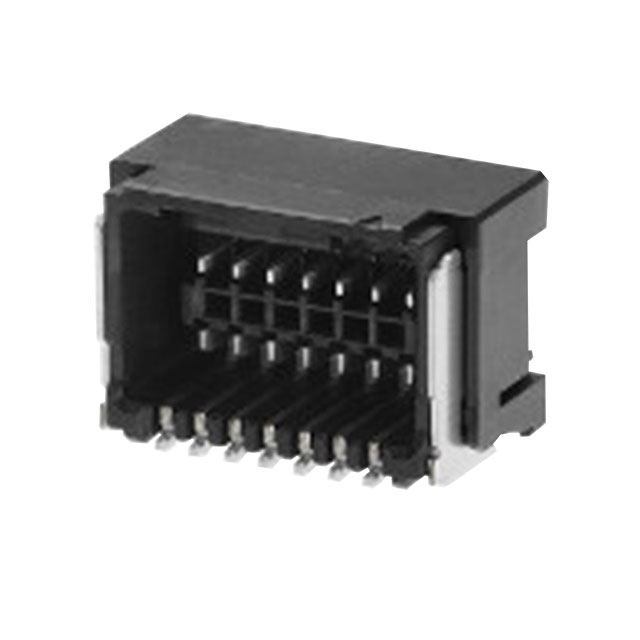

5054481471
Or copy the link below:
- Mfr.Part #
- 5054481471
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 14POS 1.25MM
- Stock
- 602
- In Stock ：
- 602
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 14
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tape and Reel (TR)
- Contact Finish - Mating :
- Tin
- Empty Shell :
- No
- Operating Temperature :
- -40°C~105°C
- Mixed Contacts :
- No
- HTS Code :
- 8536.69.40.30
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Fastening Type :
- Latch Holder
- Voltage - Rated :
- 50VAC/DC
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Pick and Place, Solder Retention
- Series :
- Micro-Lock PLUS 505448
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- Factory Lead Time :
- 17 Weeks
- Contact Shape :
- Square
- Connector Type :
- Header
- Number of Rows :
- 2
- ECCN Code :
- EAR99
- Insulation Height :
- 0.352 8.95mm
- Filter Feature :
- No
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Color :
- Black
- Applications :
- General Purpose, Industrial, Lighting
- Pitch - Mating :
- 0.049 1.25mm
- Contact Material :
- Brass
- Termination :
- Solder
- Reference Standard :
- UL
- Total Number of Contacts :
- 14
- Number of Positions Loaded :
- All
- Datasheets
- 5054481471
5054481471 Documents
Micro-Lock PLUS 505448 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 14-Position Board to Cable/Wire 0.352 8.95mm Height
5054481471 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the Micro-Lock PLUS 505448 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Lighting.A number of features make the Pick and Place, Solder Retention feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
5054481471 Features
Micro-Lock PLUS 505448 series
5054481471 Applications
There are a lot of Molex
5054481471 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
