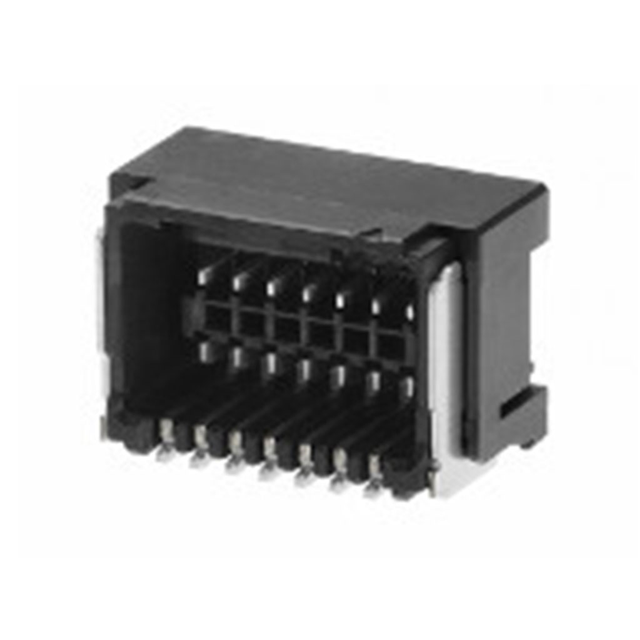

5054481271
Or copy the link below:
- Mfr.Part #
- 5054481271
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 1.25MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 12
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Lighting
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Surface Mount, Right Angle
- Contact Shape :
- Square
- Number of Rows :
- 2
- Style :
- Board to Cable/Wire
- Series :
- Micro-Lock PLUS 505448
- Empty Shell :
- No
- Mixed Contacts :
- No
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 17 Weeks
- Fastening Type :
- Latch Holder
- Contact Material :
- Brass
- Total Number of Contacts :
- 12
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Pitch - Mating :
- 0.049 1.25mm
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Reference Standard :
- UL
- HTS Code :
- 8536.69.40.30
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~105°C
- Body Length or Diameter :
- 0.476 inch
- ECCN Code :
- EAR99
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Voltage - Rated :
- 50VAC/DC
- Termination :
- Solder
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Height :
- 0.352 8.95mm
- Feature :
- Pick and Place, Solder Retention
- Insulation Material :
- Polyamide (PA), Nylon
- Filter Feature :
- No
- Insulation Color :
- Black
- Packaging :
- Tape and Reel (TR)
- Datasheets
- 5054481271
Micro-Lock PLUS 505448 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.352 8.95mm Height
5054481271 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the Micro-Lock PLUS 505448 Series.A possible application for the device is General Purpose, Industrial, Lighting.In many ways, its Pick and Place, Solder Retention feature makes it more powerful.In this case, the device operates at -40°C~105°C Operating Temperature.
5054481271 Features
Micro-Lock PLUS 505448 series
5054481271 Applications
There are a lot of Molex
5054481271 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
