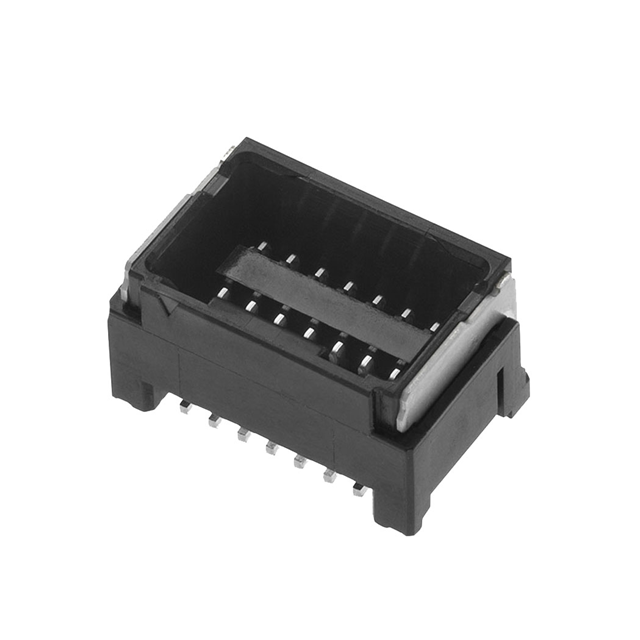

5054333671
Or copy the link below:
- Mfr.Part #
- 5054333671
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 36POS 1.25MM
- Stock
- 1,414
- In Stock ：
- 1,414
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 36
- Contact Shape :
- Square
- Current Rating (Amps) :
- Varies by WireGAuge
- Stack Height (Mating) :
- 8.6mm
- RoHS Status :
- ROHS3 Compliant
- Applications :
- Automotive, General Purpose, Industrial
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Insulation Material :
- Polyamide (PA), Nylon
- Termination :
- Solder
- Feature :
- Solder Retention
- Insulation Height :
- 0.285 7.25mm
- Contact Material :
- Brass
- Pitch - Mating :
- 0.049 1.25mm
- Operating Temperature :
- -40°C~105°C
- Number of Rows :
- 2
- Mounting Type :
- Surface Mount
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Black
- Fastening Type :
- Latch Holder
- ECCN Code :
- EAR99
- Style :
- Board to Cable/Wire
- Packaging :
- Tape and Reel (TR)
- Material Flammability Rating :
- UL94 V-0
- Series :
- Micro-Lock PLUS 505433
- Voltage - Rated :
- 50VAC/DC
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Factory Lead Time :
- 17 Weeks
- Datasheets
- 5054333671
Micro-Lock PLUS 505433 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 36-Position Board to Cable/Wire 0.285 7.25mm Height
5054333671 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Micro-Lock PLUS 505433 Series.There is the possibility of using the device for Automotive, General Purpose, Industrial.In many ways, Solder Retention makes it more powerful.Operating temperature is set to -40°C~105°C.
5054333671 Features
Micro-Lock PLUS 505433 series
5054333671 Applications
There are a lot of Molex
5054333671 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
