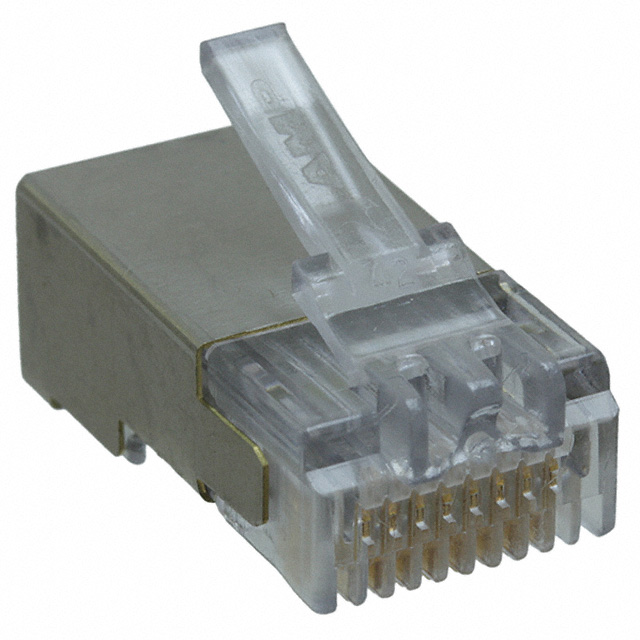

5-569542-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Min Operating Temperature :

-40°C

Connector Type :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Ratings :

Cat5

Total Number of Contacts :

4

Gender :

Male

Wire Gauge :

24-28 AWG

Filter Feature :

No

Packaging :

Bulk

Published :

2005

Flammability Rating :

UL94 V-2

Voltage - Rated DC :

150V

Wire Gauge (Min) :

24 AWG

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Factory Lead Time :

3 Weeks

DIN Conformance :

No

Length :

0.915 23.24mm

ECCN Code :

EAR99

Pitch :

1.02mm

MIL Conformance :

No

RoHS Status :

RoHS Compliant

Number of Positions Loaded :

8

Mixed Contacts :

No

Approval Agency :

CSA, UL

Wire Gauge (Max) :

28 AWG

JESD-609 Code :

e4

Housing Material :

Polycarbonate (PC)

Color :

Translucent - Clear

Cable Type :

Flat Oval Cable, Stranded Wires

Shield Material :

COPPER ALLOY

Contact Material :

Phosphor Bronze

Keyed :

No

Number of Ports :

1

Mount :

CABLE

Wire/Cable Type :

Flat

Termination :

IDC

Voltage - Rated :

150V

Current Rating :

1.5A

Empty Shell :

No

Max Operating Temperature :

60°C

Contact Finish :

Gold

IEC Conformance :

No

Shielding :

Shielded

Contact Finish Thickness :

50.0μin 1.27μm

Housing Color :

Clear

Depth :

23.25mm

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)
