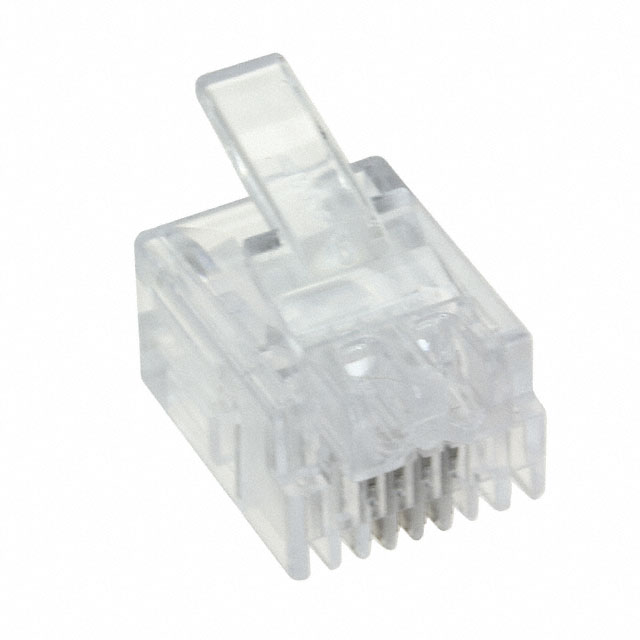

5-569030-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Insulation Resistance :

500000000 Ω

Total Number of Contacts :

4

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

MIL Conformance :

No

Contact Resistance :

30 mΩ

Shell Material :

Polycarbonate

Connector Type :

TELECOM AND DATACOM CONNECTOR

Operating Temperature :

-40 to 60 °C

Pbfree Code :

yes

Number of Contacts :

4 POS

Reach Compliance Code :

Compliant

Contact Material :

Phosphor Bronze

Additional Feature :

100 ASSEMBLIES PER BOX

Contact Style :

TELCOM, MODULAR

Contact Plating :

Gold

Mounting Style :

Straight

Contact Finish Termination :

Gold Flash (Au) - with Nickel (Ni) barrier

Mixed Contacts :

No

Number of Terminals :

4

Type :

Modular Plug

Plating Thickness :

50u inch

Gender :

PLUG

Termination Type :

Crimp

Rated Current (Signal) :

1.5 A

Body Breadth :

0.398 inch

Number of Ports :

1

Mounting :

Cable Mount

Reliability :

COMMERCIAL

Contact Gender :

Male

Reference Standard :

CSA, UL

Withdrawl Force-Min :

22.24 N

Pitch :

1.0200 mm

Filter Feature :

No

Mounting Type :

CABLE

Termination Method :

Crimp

IEC Conformance :

No

ECCN Code :

EAR99

Factory Lead Time :

5 Weeks

Dielectric Withstanding Voltage :

1000VAC V

DIN Conformance :

No

Durability :

750 Cycles

Base/Housing Material :

PC (Polycarbonate)

Body Depth :

0.53 inch

Insertion Force-Max :

22.24 N

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.30

Insulator Color :

Clear

Product Length :

9.76 mm

Empty Shell :

No

Body Orientation :

Straight
