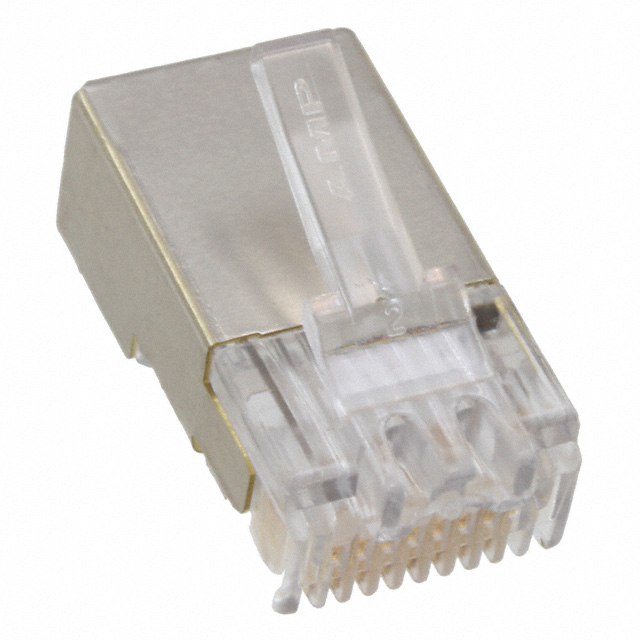

5-569532-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

ECCN Code :

EAR99

Termination Method :

Crimp

Total Number of Contacts :

8

Base/Housing Material :

PC (Polycarbonate)

Dielectric Withstanding Voltage :

1000VAC V

Option :

GENERAL PURPOSE

Body Breadth :

0.328 inch

Gender :

PLUG

Reference Standard :

UL

IEC Conformance :

No

Empty Shell :

No

Product Length :

11.79 mm

Body Depth :

0.915 inch

Rated Current (Signal) :

1.5 A

MIL Conformance :

No

Mounting :

Cable Mount

Pbfree Code :

yes

Insertion Force-Max :

2.224 N

Filter Feature :

No

Body/Shell Style :

PLUG

Shell Material :

COPPER ALLOY

Contact Plating :

Gold

Mounting Type :

CABLE

Connector Type :

TELECOM AND DATACOM CONNECTOR

Contact Gender :

Male

Mounting Style :

Straight

Contact Material :

NOT SPECIFIED

Pitch :

1.0200 mm

Body Orientation :

Straight

Mixed Contacts :

No

Shell Finish :

Nickel

Termination Type :

IDC

DIN Conformance :

No

Number of Ports :

1

Withdrawl Force-Min :

2.224 N

Contact Style :

TELCOM, MODULAR

HTS Code :

8536.69.40.30

Insulator Color :

Clear

Reliability :

COMMERCIAL

Operating Temperature :

-40 to 60 °C

Insulation Resistance :

500000000 Ω

Reach Compliance Code :

Compliant

Durability :

750 Cycles

Plating Thickness :

50u inch
