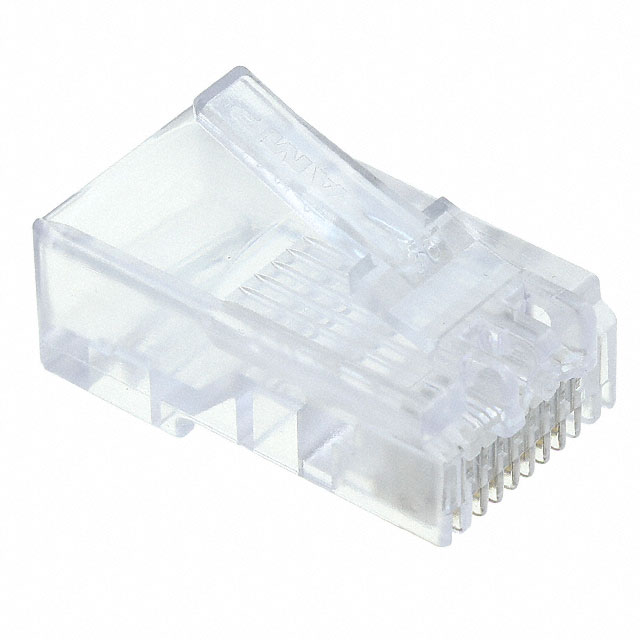

5-569215-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Packaging :

Bulk

Connector Type :

PLUG

Termination :

IDC

DIN Conformance :

No

Filter Feature :

No

Published :

2005

Wire Gauge :

24-26 AWG

UL Flammability Code :

94V-0

Color :

Translucent - Clear

Mount :

CABLE

Number of Ports :

1

Gender :

Male

Empty Shell :

No

JESD-609 Code :

e4

Min Operating Temperature :

-40°C

Wire Gauge (Max) :

26 AWG

Wire Gauge (Min) :

24 AWG

Total Number of Contacts :

8

Contact Material :

Phosphor Bronze

Shielding :

Unshielded

Depth :

22.48mm

Contact Finish Thickness :

50.0μin 1.27μm

RoHS Status :

RoHS Compliant

Housing Material :

Polycarbonate (PC)

Keyed :

No

Length :

0.885 22.48mm

MIL Conformance :

No

Housing Color :

Clear

Flammability Rating :

UL94 V-2

Pitch :

1.02mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

3 Weeks

Contact Finish :

Gold

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Cable Type :

Round Cable, Solid Wires

Number of Positions Loaded :

8

Wire/Cable Type :

Round

Pbfree Code :

yes

Mixed Contacts :

No

IEC Conformance :

No

Ratings :

Cat3

Orientation :

Straight

Max Operating Temperature :

60°C
