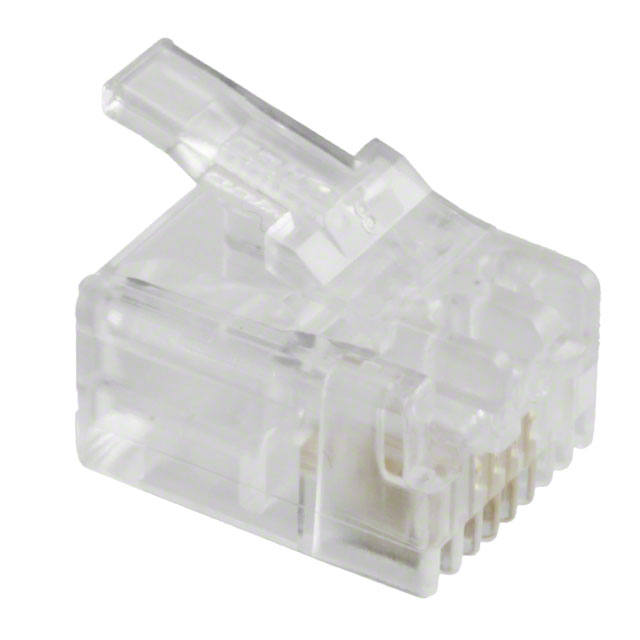

5-569031-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Min Operating Temperature :

-40°C

MIL Conformance :

No

Gender :

Male

Contact Style :

TELCOM, MODULAR

Depth :

13.47mm

Keyed :

No

Mixed Contacts :

No

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Type :

Round

Contact Finish :

Gold

Pitch :

1.02mm

Housing Material :

Polycarbonate (PC)

Shielding :

Unshielded

JESD-609 Code :

e4

Factory Lead Time :

3 Weeks

Durability :

750 Cycles

Number of Contacts :

6

Ratings :

Cat3

Number of Rows :

1

Insulation Resistance :

500000000Ohm

Lead Free :

Lead Free

Wire Gauge (Max) :

28 AWG

Connector Type :

PLUG

Empty Shell :

No

DIN Conformance :

No

Contact Material :

Phosphor Bronze

Contact Resistance :

30mOhm

Packaging :

Bulk

Plating Thickness :

50μin

Number of Positions/Contacts :

6p4c (RJ11, RJ14)

Termination :

IDC

ECCN Code :

EAR99

Orientation :

Straight

Flammability Rating :

UL94 V-2

Wire Gauge :

26-28 AWG

IEC Conformance :

No

Color :

Translucent - Clear

Pbfree Code :

yes

Cable Type :

Round Cable, Stranded Wires

Option :

GENERAL PURPOSE

Housing Color :

Clear

Published :

2005

Reference Standard :

UL, CSA

Filter Feature :

No

Mount :

CABLE

Contact Finish Thickness :

50.0μin 1.27μm

Length :

0.530 13.46mm

Max Operating Temperature :

60°C

Number of Positions Loaded :

4

Wire Gauge (Min) :

26 AWG

RoHS Status :

RoHS Compliant

Number of Ports :

1
