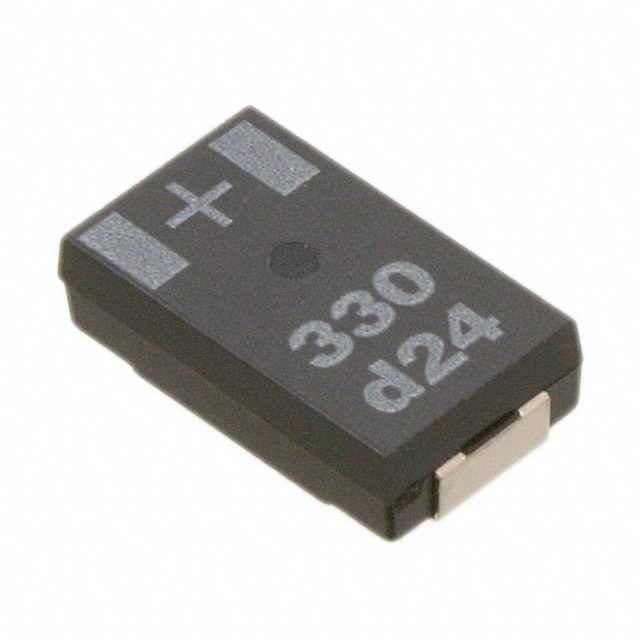

2SWZ330MR06

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Applications :

GENERAL PURPOSE

Mount :

Surface Mount

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

Lifetime @ Temp :

2000 Hrs @ 105°C

Width :

4.3mm

Tolerance :

±20%

Number of Terminations :

2

Published :

2012

Height :

1.9mm

Voltage - Rated DC :

2V

Series :

PC-CON, SWZ

Package / Case :

2917 (7343 Metric)

Capacitance :

330µF

Packaging :

Cut Tape (CT)

ECCN Code :

EAR99

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Length :

7.3mm

Case Code (Imperial) :

2917

Height Seated (Max) :

0.075 1.90mm

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Polarity :

POLARIZED

Type :

Polymer

Life (Hours) :

2000 hours

Ripple Current :

3.5A

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Rated (DC) Voltage (URdc) :

2V

Terminal Shape :

WRAPAROUND

Tan Delta :

0.1

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

ESR (Equivalent Series Resistance) :

6mOhm

Leakage Current :

0.0264mA

Ripple Current @ High Frequency :

3.5A @ 100kHz

Ripple Current (AC) :

3.5A

Packing Method :

TR

REACH SVHC :

No SVHC

JESD-609 Code :

e4

Pbfree Code :

yes

Operating Temperature :

-55°C~105°C

Case Code (Metric) :

7343
