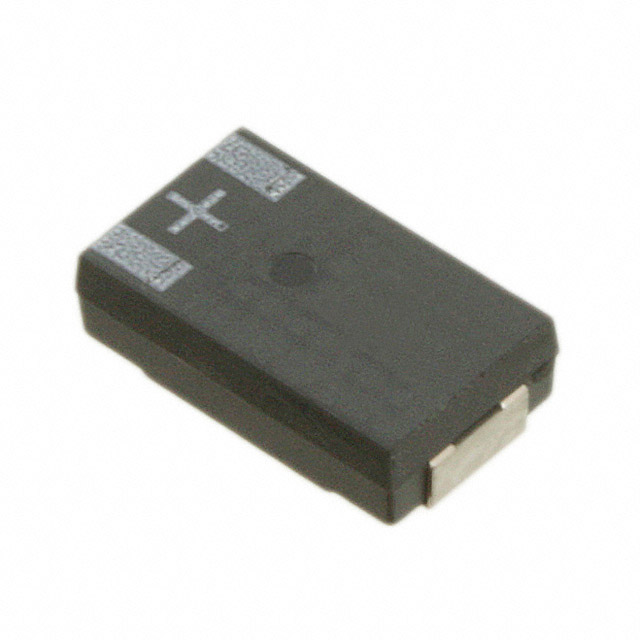

2SWZ270MR06

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Tolerance :

±20%

Lifetime @ Temp :

2000 Hrs @ 105°C

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Terminal Shape :

WRAPAROUND

Ripple Current :

3.5A

Applications :

GENERAL PURPOSE

Voltage - Rated DC :

2V

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

7.3mm

JESD-609 Code :

e4

Tan Delta :

0.1

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

RoHS Status :

ROHS3 Compliant

Packaging :

Cut Tape (CT)

Series :

PC-CON, SWZ

Packing Method :

TR

Operating Temperature :

-55°C~105°C

Published :

2012

Type :

Polymer

Mount :

Surface Mount

REACH SVHC :

No SVHC

Height :

1.9mm

Case Code (Metric) :

7343

ESR (Equivalent Series Resistance) :

6mOhm

ECCN Code :

EAR99

Ripple Current @ High Frequency :

3.5A @ 100kHz

Width :

4.3mm

Number of Terminations :

2

Ripple Current (AC) :

3.5A

Rated (DC) Voltage (URdc) :

2V

Leakage Current :

0.0216mA

Polarity :

POLARIZED

Package / Case :

2917 (7343 Metric)

Case Code (Imperial) :

2917

Height Seated (Max) :

0.075 1.90mm

Life (Hours) :

2000 hours

Capacitance :

270μF

Pbfree Code :

yes
