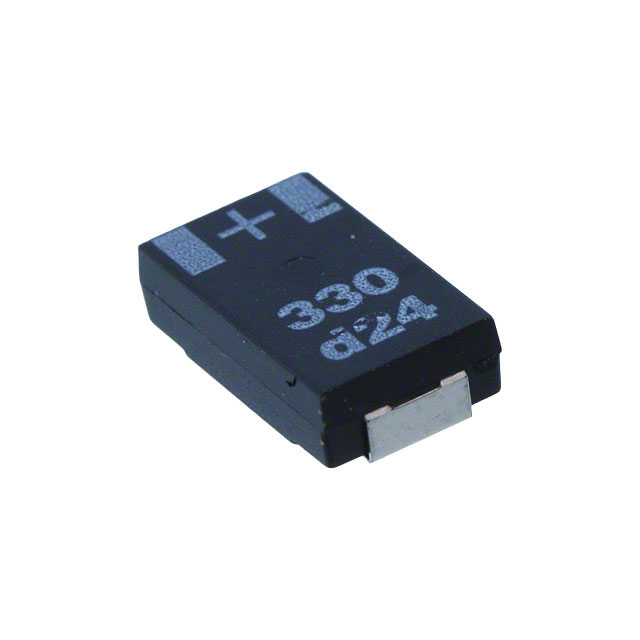

2SWZ330MR05
- Mfr.Part #
- 2SWZ330MR05
- Manufacturer
- Rubycon
- Package / Case
- 2917 (7343 Metric)
- Datasheet
- Download
- Description
- CAP ALUM POLY 330UF 20% 2V SMD
- Stock
- 4,426
- In Stock :
- 4,426
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Rubycon
- Product Category :
- Aluminum - Polymer Capacitors
- Package / Case :
- 2917 (7343 Metric)
- ESR (Equivalent Series Resistance) :
- 4.5mOhm
- RoHS Status :
- ROHS3 Compliant
- Ripple Current (AC) :
- 3.5A
- Capacitance :
- 330µF
- Polarity :
- POLARIZED
- Packaging :
- Cut Tape (CT)
- Type :
- Polymer
- Applications :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- JESD-609 Code :
- e4
- Rated (DC) Voltage (URdc) :
- 2V
- Terminal Shape :
- WRAPAROUND
- Published :
- 2012
- Voltage - Rated DC :
- 2V
- Case Code (Imperial) :
- 2917
- Leakage Current :
- 0.0264mA
- Length :
- 7.3mm
- Tolerance :
- ±20%
- Lifetime @ Temp :
- 2000 Hrs @ 105°C
- Series :
- PC-CON, SWZ
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Tan Delta :
- 0.1
- Size / Dimension :
- 0.287Lx0.169W 7.30mmx4.30mm
- REACH SVHC :
- No SVHC
- Mount :
- Surface Mount
- Operating Temperature :
- -55°C~105°C
- Ripple Current :
- 3.5A
- Case Code (Metric) :
- 7343
- Pbfree Code :
- yes
- Life (Hours) :
- 2000 hours
- Terminal Finish :
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Width :
- 4.3mm
- Surface Mount Land Size :
- 0.287Lx0.169W 7.30mmx4.30mm
- Mounting Type :
- Surface Mount
- Number of Terminations :
- 2
- Ripple Current @ High Frequency :
- 3.5A @ 100kHz
- Height Seated (Max) :
- 0.075 1.90mm
- Height :
- 1.9mm
- Packing Method :
- TR
- Datasheets
- 2SWZ330MR05
2SWZ330MR05 Documents

330μF ±20% 2917 (7343 Metric) 0.075 1.90mm Cut Tape (CT) 4.5mOhm PC-CON, SWZ Surface Mount Polymer General Purpose
