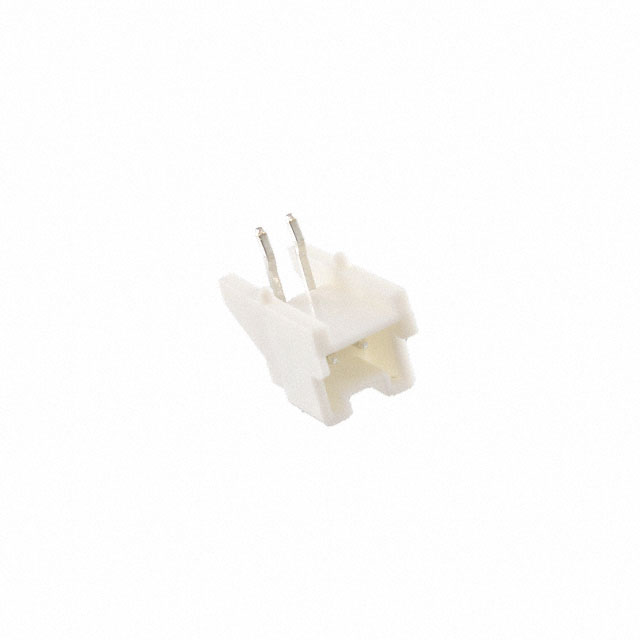

2SH-H-02-TR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Rated Current (Signal) :

3A

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Series :

2SH

Number of Conductors :

ONE

Number of Rows :

1

Contact Shape :

Square

Board Mounting Option :

PEG

Number Of PCB Rows :

1

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulator Color :

White

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Fastening Type :

Locking Ramp

Reliability :

COMMERCIAL

Style :

Board to Board or Cable

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.134 3.40mm

Contact Finish - Mating :

Tin

PCB Contact Pattern :

RECTANGULAR

Dielectric Withstanding Voltage :

800VAC V

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL, CSA

Feature :

Board Guide

Number of Positions :

2

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-25°C~85°C

Voltage - Rated :

100VAC

Pitch - Mating :

0.079 2.00mm

Packaging :

Bulk

Termination :

Kinked Pin, Solder

Factory Lead Time :

10 Weeks

Contact Material :

Brass

Mating Contact Pitch :

0.079 inch

Body Depth :

0.303 inch

Contact Type :

Male Pin
