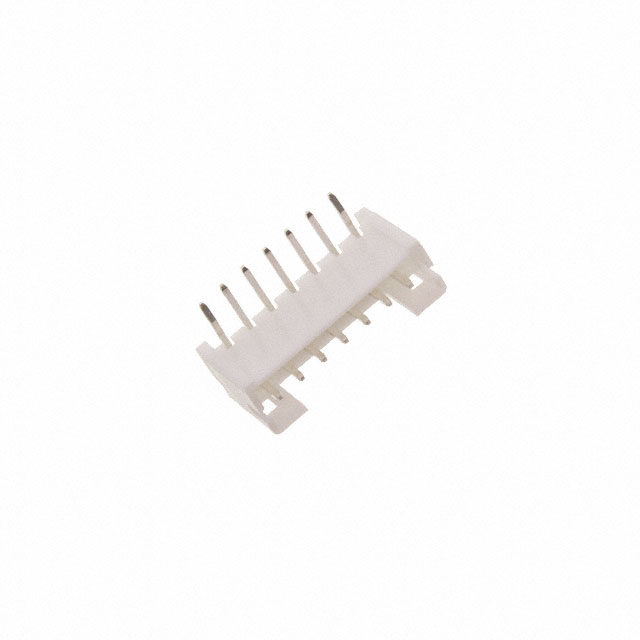

2SH-C-07-TR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Tin

Additional Feature :

RoHS Compliant

Current Rating (Amps) :

2A

Shrouding :

Shrouded - 4 Wall

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Number Of PCB Rows :

1

Voltage - Rated :

100VAC

Termination :

Kinked Pin, Solder

Number of Conductors :

ONE

Style :

Board to Cable/Wire

Body Length or Diameter :

0.626 inch

Pitch - Mating :

0.079 2.00mm

Insulation Height :

0.197 5.00mm

Contact Material :

Brass

HTS Code :

8536.69.40.40

Contact Shape :

Square

Mounting Type :

Through Hole, Right Angle

Contact Length - Post :

0.130 3.30mm

Connector Type :

Header

Insulation Material :

Polyamide (PA66), Nylon 6/6

Reliability :

COMMERCIAL

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Insulation Color :

White

ECCN Code :

EAR99

Reference Standard :

UL

Series :

2SH

Terminal Pitch :

2.0066mm

Number of Rows :

1

Number of Positions :

7

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

9 Weeks

Body Depth :

0.303 inch

Operating Temperature :

-25°C~85°C
