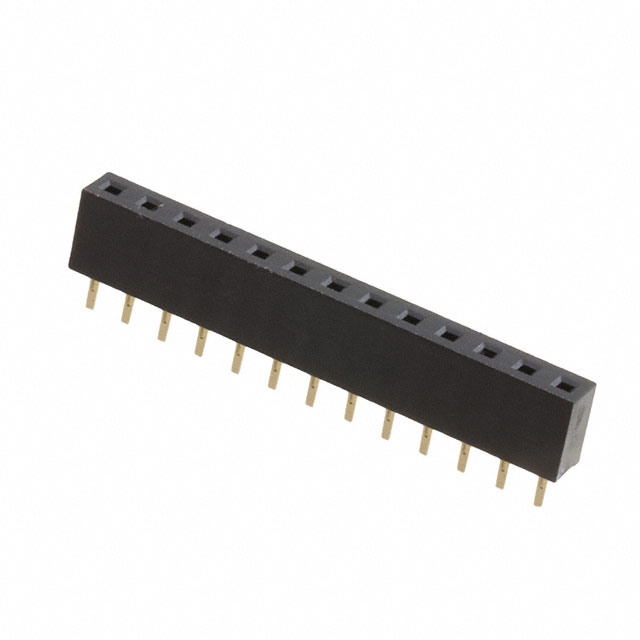

2RS1-15-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Contact Material :

Phosphor Bronze

Contact Type :

Female Socket

Number of Positions :

15

Contact Resistance :

20mOhm

Mounting Type :

Through Hole

Insulation Color :

Black

Current Rating (Amps) :

1A

PCB Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

JESD-609 Code :

e4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Termination :

0.094 inch

Packaging :

Tube

Mating Contact Pitch :

0.079 inch

Reliability :

COMMERCIAL

Style :

Board to Board

ECCN Code :

EAR99

Contact Finish Thickness - Mating :

Flash

Insulation Resistance :

5000000000Ohm

HTS Code :

8536.69.40.40

Body Breadth :

0.094 inch

Material Flammability Rating :

UL94 V-0

Terminal Pitch :

2.0066mm

Operating Temperature :

-40°C~105°C

Voltage - Rated :

250VAC

Insulation Height :

0.169 4.30mm

Fastening Type :

Push-Pull

RoHS Status :

ROHS3 Compliant

Connector Type :

Receptacle

Series :

2RS1

Contact Shape :

Square

Pitch - Mating :

0.079 2.00mm

Additional Feature :

RoHS Compliant

Contact Length - Post :

0.094 2.40mm

Withdrawl Force-Min :

.7784 N

Number Of PCB Rows :

1

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Termination :

Solder

Polarization Key :

POLARIZED HOUSING

Number of Rows :

1

Applications :

GENERAL PURPOSE

Number of Conductors :

ONE

Insulation Material :

Polybutylene Terephthalate (PBT)

Factory Lead Time :

9 Weeks

Reference Standard :

UL, CSA
