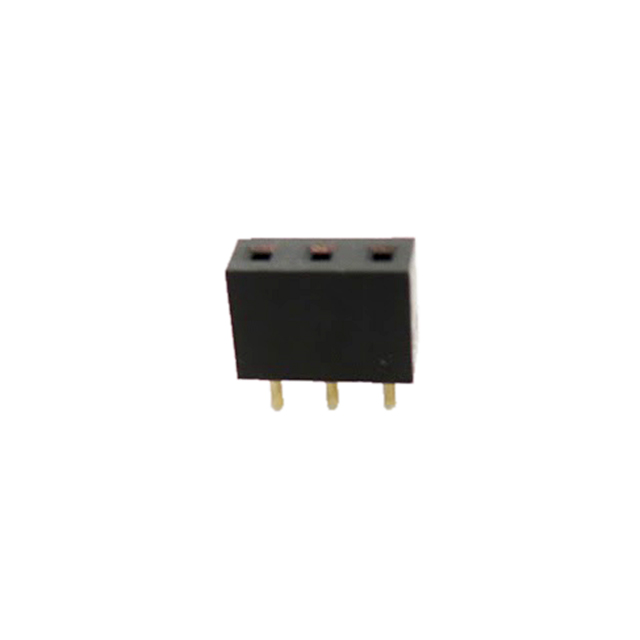

2RS1-03-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Pitch - Mating :

0.079 2.00mm

Number Of PCB Rows :

1

JESD-609 Code :

e4

Contact Material :

Phosphor Bronze

Reliability :

COMMERCIAL

Reference Standard :

UL, CSA

Number of Conductors :

ONE

Insulation Color :

Black

Contact Type :

Female Socket

Polarization Key :

POLARIZED HOUSING

Insulation Height :

0.169 4.30mm

RoHS Status :

ROHS3 Compliant

Fastening Type :

Push-Pull

Mounting Type :

Through Hole

Contact Finish Thickness - Mating :

Flash

Number of Positions Loaded :

All

Additional Feature :

RoHS Compliant

Insulation Material :

Polybutylene Terephthalate (PBT)

Packaging :

Tube

Applications :

GENERAL PURPOSE

Body Breadth :

0.094 inch

Mating Contact Pitch :

0.079 inch

ECCN Code :

EAR99

Length - Termination :

0.094 inch

Style :

Board to Board

Lead Free :

Lead Free

Connector Type :

Receptacle

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

20mOhm

Operating Temperature :

-40°C~105°C

Terminal Pitch :

2.0066mm

Series :

2RS1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Option 1 :

LOCKING

Number of Positions :

3

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

0.094 2.40mm

Factory Lead Time :

9 Weeks

Contact Shape :

Square

Contact Finish - Mating :

Gold

Number of Rows :

1

Withdrawl Force-Min :

.7784 N

Voltage - Rated :

250VAC

Current Rating (Amps) :

1A

Insulation Resistance :

5000000000Ohm
