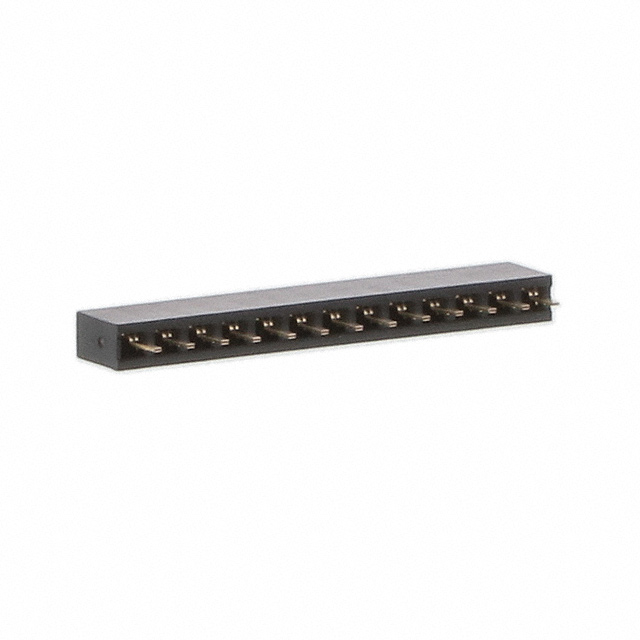

2RS1-13-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Contact Finish Thickness - Mating :

Flash

Operating Temperature :

-40°C~105°C

Factory Lead Time :

9 Weeks

Number of Conductors :

ONE

Current Rating (Amps) :

1A

Number Of PCB Rows :

1

Mounting Option 1 :

LOCKING

Contact Type :

Female Socket

Style :

Board to Board

Applications :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Length - Termination :

0.094 inch

ECCN Code :

EAR99

Termination :

Solder

Contact Shape :

Square

Insulation Material :

Polybutylene Terephthalate (PBT)

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Withdrawl Force-Min :

.7784 N

Series :

2RS1

Insulation Height :

0.169 4.30mm

Fastening Type :

Push-Pull

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle

Mounting Type :

Through Hole

Mating Contact Pitch :

0.079 inch

Voltage - Rated :

250VAC

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Terminal Pitch :

2.0066mm

Additional Feature :

RoHS Compliant

Polarization Key :

POLARIZED HOUSING

Packaging :

Tube

HTS Code :

8536.69.40.40

Body Breadth :

0.094 inch

Insulation Color :

Black

Contact Material :

Phosphor Bronze

Reference Standard :

UL, CSA

Contact Length - Post :

0.094 2.40mm

Insulation Resistance :

5000000000Ohm

Contact Resistance :

20mOhm

Pitch - Mating :

0.079 2.00mm

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

13
