2RS1-05-G

Share

Or copy the link below:

Mfr.Part #
2RS1-05-G
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
RECEPTACLE STRIP 5P 2.0MM PITCH
Stock
3,034
In Stock :
3,034

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
Headers, Receptacles, Female Sockets
PCB Contact Pattern :
RECTANGULAR
Contact Length - Post :
0.094 2.40mm
Number of Conductors :
ONE
Terminal Pitch :
2mm
Insulation Height :
0.169 4.30mm
Applications :
GENERAL PURPOSE
Number of Rows :
1
Insulation Color :
Black
Contact Resistance :
20mOhm
Mounting Type :
Through Hole
Length - Termination :
0.094 inch
Contact Material :
Phosphor Bronze
Reference Standard :
UL, CSA
Polarization Key :
POLARIZED HOUSING
Mating Contact Pitch :
0.079 inch
Connector Type :
Receptacle
JESD-609 Code :
e4
Number of Positions :
5
Contact Finish Thickness - Mating :
Flash
Withdrawl Force-Min :
.7784 N
Mounting Option 1 :
LOCKING
Insulation Material :
Polybutylene Terephthalate (PBT)
Body Breadth :
0.094 inch
Additional Feature :
RoHS Compliant
Contact Finish - Mating :
Gold
UL Flammability Code :
94V-0
Packaging :
Tube
Style :
Board to Board
Contact Shape :
Square
Material Flammability Rating :
UL94 V-0
Termination :
Solder
Fastening Type :
Push-Pull
Mixed Contacts :
No
Number of Positions Loaded :
All
Number Of PCB Rows :
1
Reliability :
COMMERCIAL
RoHS Status :
ROHS3 Compliant
Pitch - Mating :
0.079 2.00mm
IEC Conformance :
No
Voltage - Rated :
250VAC
Contact Type :
Female Socket
Factory Lead Time :
9 Weeks
DIN Conformance :
No
MIL Conformance :
No
ECCN Code :
EAR99
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Series :
2RS1
Operating Temperature :
-40°C~105°C
Current Rating (Amps) :
1A
Filter Feature :
No
Introducing Headers, Receptacles, Female Sockets Adam Tech 2RS1-05-G from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-40°C~105°C, 2RS1-05-G pinout, 2RS1-05-G datasheet PDF, 2RS1-05-G amp .Beyond Headers, Receptacles, Female Sockets Adam Tech 2RS1-05-G ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

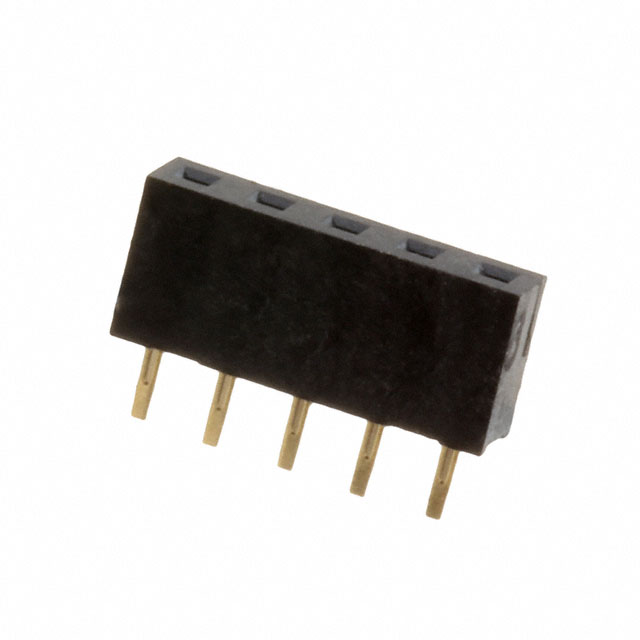

Adam Tech 2RS1-05-G


1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polybutylene Terephthalate (PBT) 5 Positions Female Socket

2RS1-05-G Overview


It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the 2RS1 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.General Purpose is a possible application for the device.The device runs in -40°C~105°C Operating Temperature.

2RS1-05-G Features


2RS1 series


2RS1-05-G Applications


There are a lot of Adam Tech
2RS1-05-G Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
