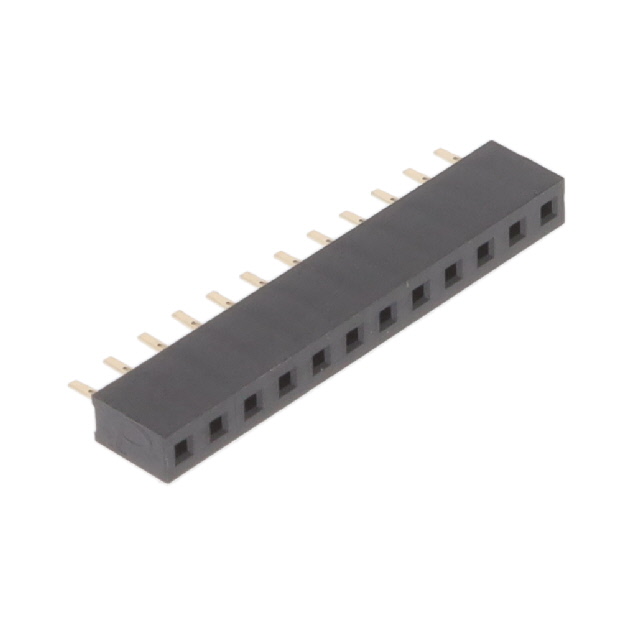

2RS1-12-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Connector Type :

Receptacle

Termination :

Solder

Terminal Pitch :

2.0066mm

Contact Shape :

Square

Pitch - Mating :

0.079 2.00mm

Contact Finish - Mating :

Gold

Withdrawl Force-Min :

.7784 N

Additional Feature :

RoHS Compliant

Fastening Type :

Push-Pull

Reference Standard :

UL, CSA

HTS Code :

8536.69.40.40

Body Length or Diameter :

0.948 inch

Number of Conductors :

ONE

Number of Positions Loaded :

All

Number of Rows :

1

Series :

2RS1

Packaging :

Tube

Applications :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Length - Termination :

0.094 inch

Mating Contact Pitch :

0.079 inch

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Insulation Height :

0.169 4.30mm

JESD-609 Code :

e4

Insulation Resistance :

5000000000Ohm

Insulation Color :

Black

Voltage - Rated :

250VAC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

0.094 inch

Contact Length - Post :

0.094 2.40mm

Current Rating (Amps) :

1A

Number of Positions :

12

Style :

Board to Board

Contact Resistance :

20mOhm

Contact Type :

Female Socket

Mounting Option 1 :

LOCKING

Mounting Type :

Through Hole

Contact Finish Thickness - Mating :

Flash

Reliability :

COMMERCIAL

Number Of PCB Rows :

1

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-40°C~105°C

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

9 Weeks

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Material :

Phosphor Bronze
