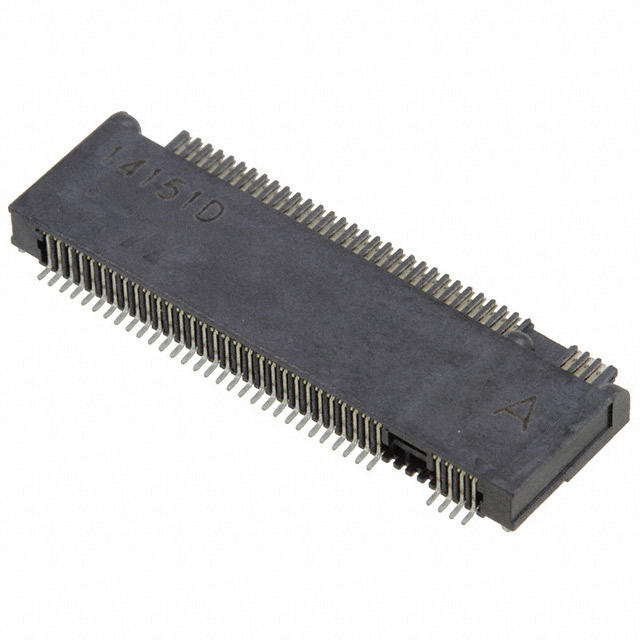

2199125-8
Or copy the link below:
- Mfr.Part #
- 2199125-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN M.2 FMALE 67POS 0.020 GOLD
- Stock
- 19,793
- In Stock ：
- 19,793
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Packaging :
- Tape and Reel (TR)
- Housing Color :
- Black
- Termination :
- Solder
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length :
- 21.8948mm
- Mounting Type :
- Surface Mount, Right Angle
- Number of Positions :
- 67
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Thermoplastic
- Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 11 Weeks
- Gender :
- FEMALE
- Contact Finish :
- Gold
- Number of Rows :
- 2
- Width :
- 8.7mm
- Contact Plating :
- Gold, Tin
- Mount :
- Surface Mount
- Material - Insulation :
- Thermoplastic
- Contact Current Rating :
- 500mA
- Read Out :
- Dual
- Published :
- 2014
- ELV :
- Compliant
- Number of Pins :
- 67
- Color :
- Black
- Pitch :
- 0.020 0.50mm
- Feature :
- Board Guide
- Card Type :
- M.2 (NGFF) Mini Card
- Contact Material :
- COPPER ALLOY
- Height :
- 2.25mm
- Datasheets
- 2199125-8
Female Black 0.020 0.50mm Copper Alloy 2 Rows Tape & Reel (TR) Solder Gold 67 Positions Thermoplastic
2199125-8 Overview
We packaged the material in accordance with Tape & Reel (TR)'s specifications.The mount type Surface Mount, Right Angle is recommended.Features of the device are Board Guide.For it to operate, 67 pins are required.
2199125-8 Features
2199125-8 Applications
There are a lot of TE Connectivity AMP Connectors
2199125-8 Edgeboard Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
