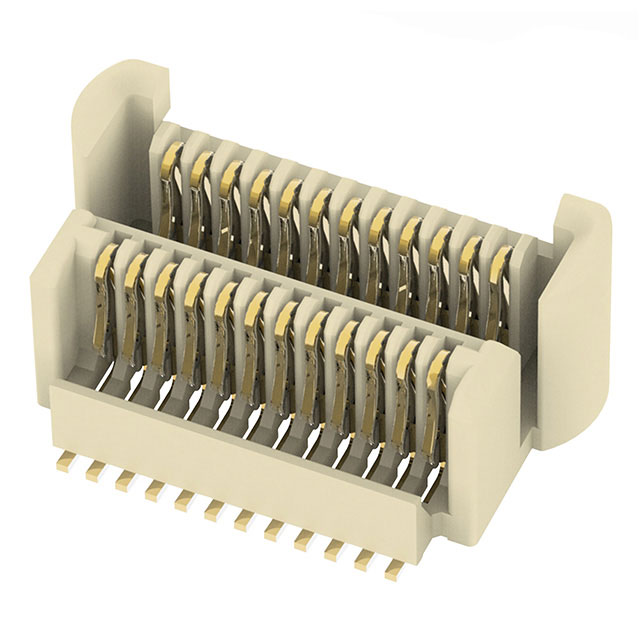

2199070-4
Or copy the link below:
- Mfr.Part #
- 2199070-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SELF-MATE 24POS SMD GOLD
- Stock
- 13,200
- In Stock ：
- 13,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Stack Height :
- 3.9878mm
- Mounting Type :
- Surface Mount
- Current Rating :
- 500mA
- ELV :
- Compliant
- Orientation :
- Vertical
- PCB Mount Alignment :
- Without
- Pitch :
- 0.020 0.50mm
- Voltage - Rated :
- 50V
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Number of Positions :
- 24
- Number of Rows :
- 2
- Contact Resistance :
- 30mOhm
- Contact Current Rating :
- 500mA
- Min Operating Temperature :
- -40°C
- Preloaded :
- yes
- Stack Height (Mating) :
- 4mm
- Packaging :
- Cut Tape (CT)
- Published :
- 2013
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Thermoplastic
- Housing Color :
- Black
- Termination :
- SMD/SMT
- Mount :
- Surface Mount
- Contact Finish :
- Gold
- Contact Finish Thickness - Mating :
- 380 nm
- Mating Alignment :
- With
- Depth :
- 5.7mm
- Factory Lead Time :
- 13 Weeks
- Row Spacing :
- 3.2 mm
- Height :
- 3.5814mm
- Operating Supply Voltage :
- 30V
- Circuit Application :
- Signal
- Color :
- Natural
- Max Operating Temperature :
- 125°C
- Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 2MOhm
- Series :
- Fine Pitch Hermaphroditic (FPH)
- Connector Type :
- Self Mating, Non-Gendered
- Gender :
- Hermaphroditic
- Datasheets
- 2199070-4
Self Mating, Non-Gendered Cut Tape (CT) 2 Rows 0.020 0.50mm Surface Mount 24 Positions Fine Pitch Hermaphroditic (FPH) Gold SMD/SMT
2199070-4 Overview
Currently, it is packaged in Self Mating, Non-Gendered.A Cut Tape (CT) case is used to package the product.The mounting type of the device is Surface Mount.A product of the Fine Pitch Hermaphroditic (FPH) Series, it belongs to the range of products of that series.Using a Surface Mount socket is required in order to mount the item.A temperature below 125°C is best for using it.The device must run at -40°C degrees.As this device is suitable for the operation with a 30V supply, it should be used with that supply.
2199070-4 Features
Fine Pitch Hermaphroditic (FPH) series
Package / Case: Cut Tape (CT)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
2199070-4 Applications
There are a lot of TE Connectivity AMP Connectors
2199070-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
