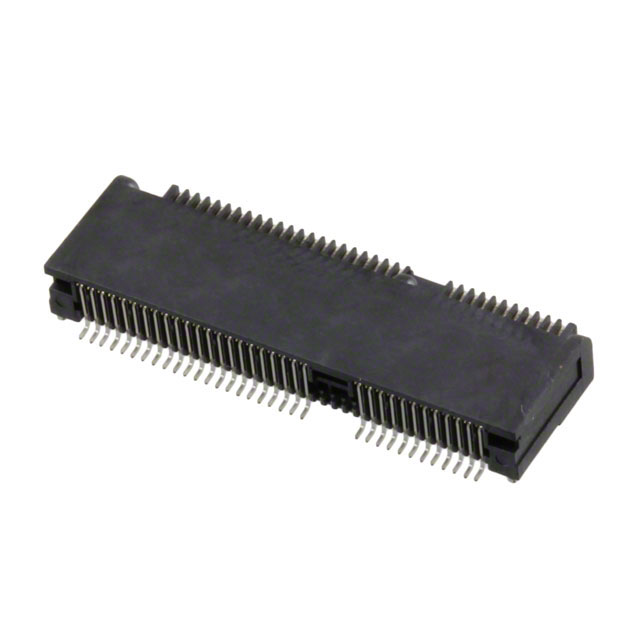

2199119-4
Or copy the link below:
- Mfr.Part #
- 2199119-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN M.2 FMALE 67POS 0.020 GOLD
- Stock
- 3,076
- In Stock ：
- 3,076
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Operating Temperature :
- -40°C~80°C
- Factory Lead Time :
- 25 Weeks
- Mounting Type :
- Surface Mount, Right Angle
- Max Operating Temperature :
- 80°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Color :
- Black
- Row Spacing :
- 7.55 mm
- Pitch :
- 0.020 0.50mm
- Plating :
- Gold
- Length :
- 21.8948mm
- Termination :
- Solder
- Contact Plating :
- Gold, Tin
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Contact Current Rating :
- 500mA
- Feature :
- Board Guide
- Card Type :
- M.2 (NGFF) Mini Card
- Voltage - Rated :
- 50V
- Gender :
- FEMALE
- Number of Positions :
- 67
- Current Rating :
- 500mA
- Packaging :
- Tape and Reel (TR)
- Orientation :
- RIGHT ANGLE
- Housing Color :
- Black
- Mount :
- Surface Mount
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Height :
- 3.2mm
- ELV :
- Compliant
- Min Operating Temperature :
- -40°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Housing Material :
- Thermoplastic
- Published :
- 2013
- Width :
- 8.7mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- REACH SVHC :
- Unknown
- Operating Supply Voltage :
- 50V
- Number of Contacts :
- 67
- Sealable :
- No
- Circuit Application :
- Power
- Contact Material :
- COPPER ALLOY
- Material - Insulation :
- Thermoplastic
- Read Out :
- Dual
- Insulation Resistance :
- 500MOhm
- Datasheets
- 2199119-4
