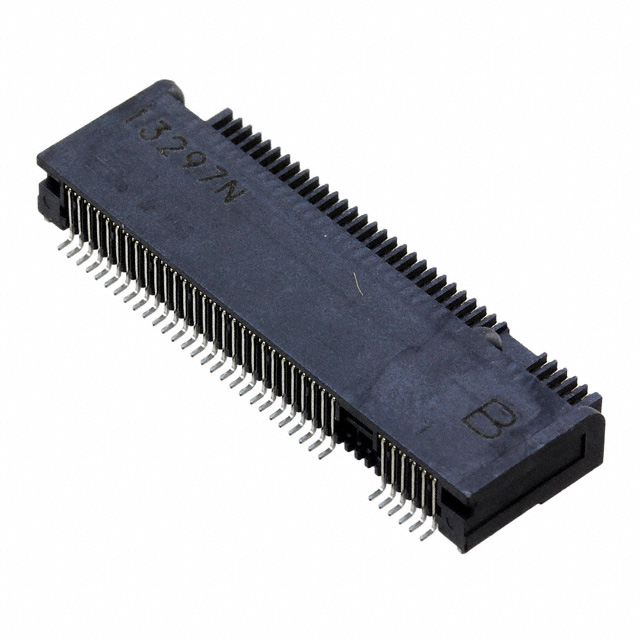

2199119-3
Or copy the link below:
- Mfr.Part #
- 2199119-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN M.2 FMALE 67POS 0.020 GOLD
- Stock
- 14,804
- In Stock ：
- 14,804
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Current Rating (Max) :
- 0.5/Contact(A)
- Voltage Rating :
- 50 V
- Card Thickness :
- -
- Contact Material :
- COPPER ALLOY
- HTS Code :
- 8536.69.40.40
- Body Orientation :
- RIGHT ANGLE
- Product :
- M.2 (NGFF)
- Number of Contact Rows :
- 2
- Body/Shell Style :
- Socket
- Brand :
- TE Connectivity
- Maximum Voltage Rating :
- 50
- Termination Type :
- Surface Mount
- Contact Resistance Max :
- 75(mohm)
- Housing Material :
- Thermoplastic
- Product Type :
- PCI Express / PCI Connectors
- Filter Feature :
- No
- Number of Positions :
- 67 Position
- Number of Contacts :
- 67(POS)
- Minimum Operating Temperature :
- -40°C
- Card Type :
- Card Edge
- Product Category :
- PCI Express / PCI Connectors
- Number of Rows :
- 2
- IEC Conformance :
- No
- Mounting Type :
- Surface Mount
- Termination Method :
- Solder
- RoHS :
- Details
- Housing Color :
- Black
- Subcategory :
- Card Edge Connectors
- Mixed Contacts :
- No
- Voltage Rating Max :
- 50VAC
- Maximum Operating Temperature :
- +80°C
- Insulation Resistance :
- 500 MOhms
- Contact Plating :
- Gold Over Nickel
- Total Number of Contacts :
- 67
- Manufacturer :
- TE Connectivity
- Packaging :
- Tape and Reel
- Option :
- GENERAL PURPOSE
- Length :
- 21.9mm
- MIL Conformance :
- No
- Terminal Pitch :
- 0.5 mm
- Pitch :
- 0.5000 mm
- Pin Count :
- 67
- Mounting Style :
- Surface Mount
- Factory Lead Time :
- 22 Weeks
- Operating Temp Range :
- -40C to 80C
- Gender :
- FEMALE
- Series :
- M.2
- Depth :
- 3.2mm
- Contact Gender :
- FEMALE
- Dimensions :
- 21.9 x 8.7 x 3.2mm
- Base/Housing Material :
- Thermoplastic
- Mounting Angle :
- Right
- Type :
- Card Edge
- Connector Type :
- CARD EDGE CONNECTOR
- Reach Compliance Code :
- Compliant
- ECCN Code :
- EAR99
- Pitch (mm) :
- 0.5(mm)
- DIN Conformance :
- No
- Brand Name :
- TE Connectivity
- Mounting :
- Surface Mount
- Current Rating :
- 500 mA
- Product Height (mm) :
- 3.2(mm)
- Width :
- 8.7mm
- Datasheets
- 2199119-3
