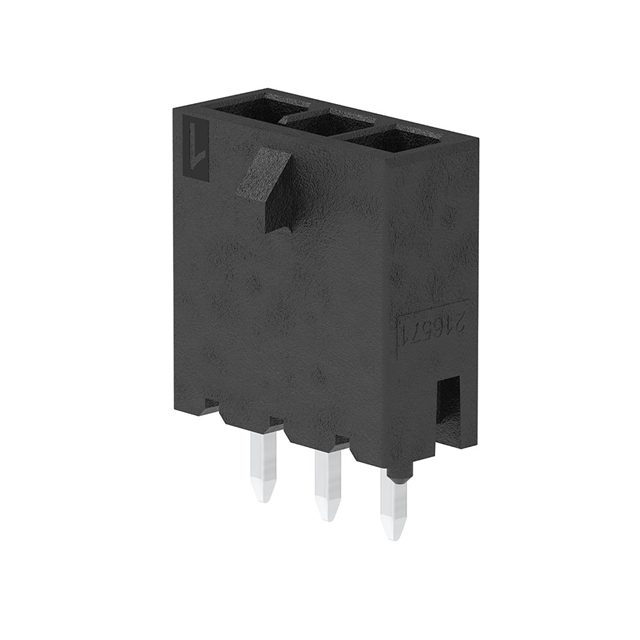

2165712003
Or copy the link below:
- Mfr.Part #
- 2165712003
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MICRO-FIT PLUS SR VT HDR ASSY 15
- Stock
- 2,709
- In Stock ：
- 2,709
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Contact Plating :
- Gold
- Mounting Type :
- Through Hole
- Pitch :
- 3 mm
- Type :
- Micro-Fit PCB Headers
- Termination :
- Solder
- Pitch - Mating :
- 0.118 (3.00mm)
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Number of Contacts :
- 3
- Base Product Number :
- 216571
- Applications :
- -
- Maximum Operating Temperature :
- + 105 C
- Operating Temperature :
- -40°C ~ 105°C
- Current Rating (Amps) :
- Varies by Wire Gauge
- Tradename :
- Micro-Fit+
- Application :
- Power, Wire-to-Board
- Number of Positions Loaded :
- All
- Contact Material :
- COPPER ALLOY
- Features :
- Board Guide, Glow Wire Compliant
- Number of Positions :
- 3 Position
- Mounting Angle :
- Straight
- Ingress Protection :
- -
- RoHS :
- Details
- Connector Type :
- Header
- Mounting Style :
- PCB Mount
- Package :
- Tray
- Contact Length - Mating :
- -
- Series :
- 216571
- Fastening Type :
- Locking Ramp
- Housing Color :
- Black
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Current Rating :
- 13 A
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 15.0μin (0.38μm)
- Insulation Color :
- Black
- Flammability Rating :
- UL 94 V-0
- Overall Contact Length :
- -
- Mated Stacking Heights :
- -
- Minimum Operating Temperature :
- - 40 C
- Packaging :
- Tray
- Insulation Height :
- 0.390 (9.91mm)
- Contact Length - Post :
- 0.125 (3.18mm)
- Contact Finish Thickness - Post :
- -
- Termination Style :
- Solder Pin
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- Voltage Rating :
- 600 VAC/VDC
- Product :
- Headers
- Product Status :
- Active
- Body Orientation :
- Vertical
- Insulation Resistance :
- 1000 MOhms
- Housing Gender :
- Receptacle
- Number of Rows :
- 1 Row
- Row Spacing - Mating :
- -
- Datasheets
- 2165712003
2165712003 Documents
1 Row Rows Header Tray 3 Position Positions Through Hole Male Pin 216571 Liquid Crystal Polymer (LCP)
216571-2003 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the 216571 Series.
216571-2003 Features
216571 series
216571-2003 Applications
There are a lot of Molex
216571-2003 Rectangular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
