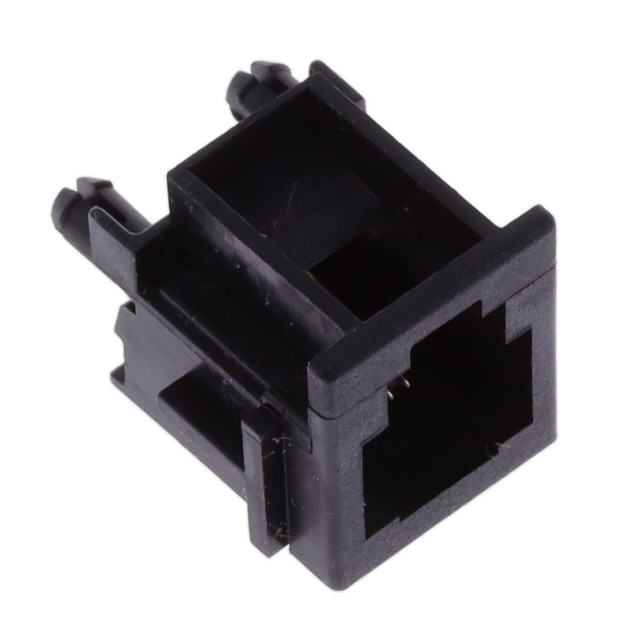

216564-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Orientation :

Vertical

Filter Feature :

No

Reliability :

COMMERCIAL

Contact Finish :

Gold

Pbfree Code :

yes

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Thickness :

1.6mm

Height :

16.4mm

Plating Thickness :

50μin

Number of Positions Loaded :

6

Depth :

15.8mm

Contact Style :

TELCOM, MODULAR

Length - Tail :

3.0988mm

Element Configuration :

Single

PCB Contact Pattern :

STAGGERED

Contact Resistance :

30mOhm

Factory Lead Time :

16 Weeks

Insulation Resistance :

500000000Ohm

Empty Shell :

No

Length :

16mm

Ratings :

Cat3

Max Current Rating :

1.5A

Direction :

User Selectable

Contact Finish Thickness :

47.2μin 1.20μm

Flammability Rating :

UL94 HB

Total Number of Contacts :

6

REACH SVHC :

Unknown

Operating Temperature :

-40°C~70°C

Durability :

750 Cycles

Connector Type :

JACK

ELV :

Compliant

Color :

Black

Mounting Option 1 :

LOCKING

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

LED Color :

Does Not Contain LED

Mixed Contacts :

No

Package Quantity :

700

Feature :

Board Lock, Panel Stops

Published :

2003

RoHS Status :

RoHS Compliant

Circuit Application :

Signal

Number of Ports :

1

Mounting Type :

Through Hole

Gender :

Receptacle

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Termination :

Solder

Tab Direction :

User Selectable

Contact Material :

Phosphor Bronze

Board Mounting Option :

SPLIT BOARD LOCK

Option :

GENERAL PURPOSE

Pitch :

2.54mm

MIL Conformance :

No

DIN Conformance :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Keyed :

No

Shielding :

Unshielded

Reference Standard :

UL, CSA
