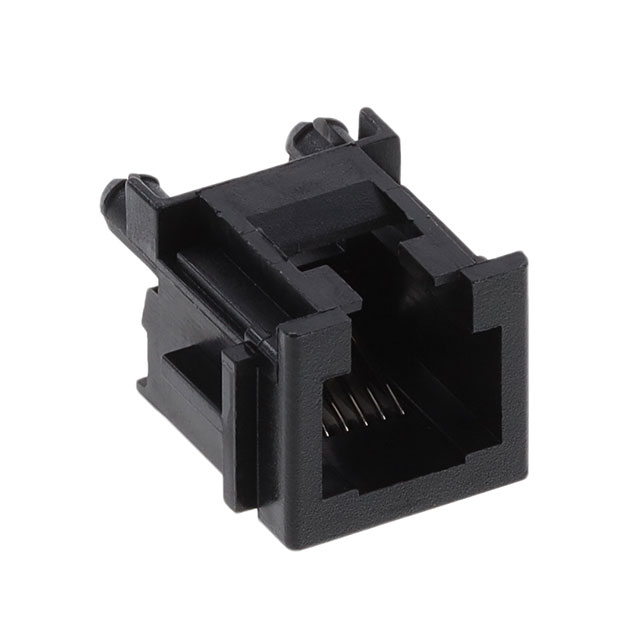

216548-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Insulation Resistance :

500000000Ohm

Tab Direction :

User Selectable

Packaging :

Tape and Reel (TR)

PCB Thickness :

1.6mm

REACH SVHC :

Unknown

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Voltage - Rated AC :

150V

Factory Lead Time :

12 Weeks

Orientation :

Vertical

Current Rating :

1.5A

Connector Type :

JACK

Shielding :

Unshielded

MIL Conformance :

No

Reference Standard :

UL, CSA

Total Number of Contacts :

6

Max Current Rating :

1.5A

Option :

GENERAL PURPOSE

Length - Tail :

3.0988mm

IEC Conformance :

No

Operating Temperature :

-40°C~70°C

Empty Shell :

No

LED Color :

Does Not Contain LED

Number of Ports :

1

Filter Feature :

No

Keyed :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Board Mounting Option :

SPLIT BOARD LOCK

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Resistance :

30mOhm

ELV :

Compliant

Body Breadth :

0.5 inch

Direction :

User Selectable

Durability :

750 Cycles

Max Voltage Rating (AC) :

150V

Feature :

Board Lock, Panel Stops

Depth :

12.4mm

Mounting Option 1 :

LOCKING

Width :

18mm

Contact Finish :

Gold

Gender :

Receptacle

Material :

Polyester

Contact Style :

TELCOM, MODULAR

Mounting Type :

Through Hole

Height :

16.4mm

Flammability Rating :

UL94 HB

Termination :

Solder

Contact Finish Thickness :

47.2μin 1.20μm

Pitch :

2.54mm

Length :

16mm

PCB Contact Pattern :

STAGGERED

Voltage - Rated :

150V

Circuit Application :

Signal

Plating Thickness :

50μin

Ratings :

Cat3

ECCN Code :

EAR99

Element Configuration :

Single

Published :

2002

Number of Positions Loaded :

6

Package Quantity :

800

Reliability :

COMMERCIAL

Contact Material :

Phosphor Bronze
