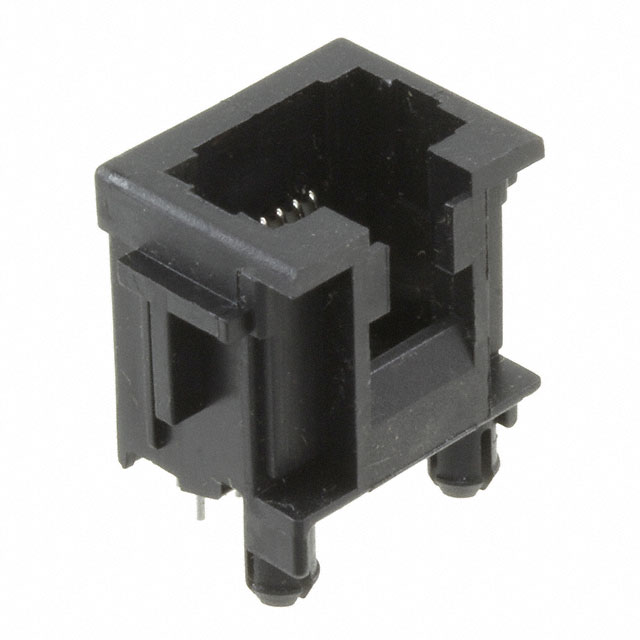

216550-2
Or copy the link below:
- Mfr.Part #
- 216550-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C VERT UNSHLD
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- IEC Conformance :
- No
- Tab Direction :
- User Selectable
- Circuit Application :
- Signal
- Plating Thickness :
- 47μin
- Lead Free :
- Lead Free
- Packaging :
- Tape and Reel (TR)
- JESD-609 Code :
- e3
- Series :
- TE
- Current Rating :
- 1.5A
- Ratings :
- Cat3
- Height :
- 16.4mm
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Mounting Option 1 :
- LOCKING
- Contact Finish Thickness - Mating :
- 1.2μm
- Depth :
- 12.7mm
- Number of Positions Loaded :
- 8
- Body Breadth :
- 0.709 inch
- Published :
- 2003
- Pbfree Code :
- yes
- Keyed :
- No
- Shielding :
- Unshielded
- Operating Temperature :
- -40°C~70°C
- Contact Gender :
- FEMALE
- Color :
- Black
- Number of Ports :
- 1
- Filter Feature :
- No
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- PCB Contact Pattern :
- STAGGERED
- Length - Tail :
- 3.0988mm
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Total Number of Contacts :
- 8
- Board Mounting Option :
- SPLIT BOARD LOCK
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Mixed Contacts :
- No
- Element Configuration :
- Single
- UL Flammability Code :
- 94V-0
- PCB Thickness :
- 1.6mm
- Contact Plating :
- Gold, Nickel
- Length :
- 18mm
- Contact Finish :
- Gold
- Contact Resistance :
- 30mOhm
- RoHS Status :
- RoHS Compliant
- Empty Shell :
- No
- Orientation :
- Vertical
- Direction :
- User Selectable
- DIN Conformance :
- No
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Lock, Panel Stops
- LED Color :
- Does Not Contain LED
- Termination :
- Solder
- Insulation Resistance :
- 500000000Ohm
- Reference Standard :
- UL
- Pitch :
- 2.54mm
- Durability :
- 750 Cycles
- ELV :
- Compliant
- Connector Type :
- JACK
- ECCN Code :
- EAR99
- Factory Lead Time :
- 10 Weeks
- Datasheets
- 216550-2
TE Jack Tape & Reel (TR) Unshielded 8p8c (RJ45, Ethernet) 1 Port Vertical Solder Through Hole -40°C~70°C
216550-2 Overview
Packaging is in the form of Jack.The mounting type of the device is Through Hole.A Tape & Reel (TR) case is used to package the product.A product of the TE Series, it belongs to the range of products of that series.There are 1 ports available for a variety of tasks to be performed on it.A number of features make the Board Lock, Panel Stops feature more powerful.-40°C~70°C Operating Temperature is the default operating temperature for the device.
216550-2 Features
TE series
216550-2 Applications
There are a lot of TE Connectivity AMP Connectors
216550-2 Modular Connectors applications.
