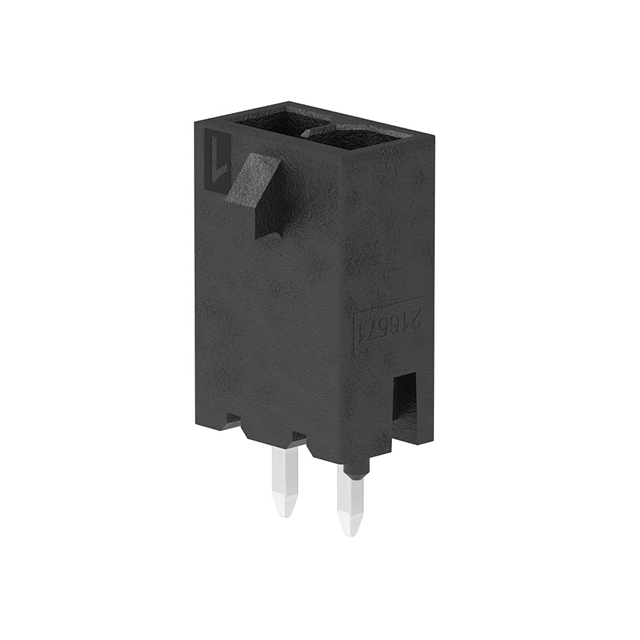

2165712002

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Packaging :

Tray

Insulation Height :

0.390 (9.91mm)

Product Status :

Active

Package :

Tray

Insulation Resistance :

1000 MOhms

Contact Plating :

Gold

Tradename :

Micro-Fit+

Base Product Number :

216571

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish - Mating :

Gold

Pitch - Mating :

0.118 (3.00mm)

Housing Material :

Liquid Crystal Polymer (LCP)

Shrouding :

Shrouded - 4 Wall

Features :

Board Guide, Glow Wire Compliant

RoHS :

Details

Fastening Type :

Locking Ramp

Connector Type :

Header

Current Rating :

13 A

Mounting Type :

Through Hole

Applications :

-

Mated Stacking Heights :

-

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Contact Material :

COPPER ALLOY

Application :

Power, Wire-to-Board

Mounting Style :

PCB Mount

Voltage Rating :

600 VAC/VDC

Type :

Micro-Fit PCB Headers

Contact Type :

Male Pin

Body Orientation :

Vertical

Number of Rows :

1 Row

Ingress Protection :

-

Row Spacing - Mating :

-

Housing Gender :

Receptacle

Insulation Color :

Black

Product :

Headers

Contact Finish - Post :

Tin

Contact Shape :

Square

Termination :

Solder

Contact Length - Mating :

-

Number of Contacts :

2

Series :

216571

Current Rating (Amps) :

Varies by Wire Gauge

Material Flammability Rating :

UL94 V-0

Number of Positions :

2 Position

Maximum Operating Temperature :

+ 105 C

Pitch :

3 mm

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Contact Finish Thickness - Post :

-

Housing Color :

Black

Termination Style :

Solder Pin

Contact Length - Post :

0.125 (3.18mm)

Minimum Operating Temperature :

- 40 C

Mounting Angle :

Straight

Overall Contact Length :

-

Operating Temperature :

-40°C ~ 105°C

Flammability Rating :

UL 94 V-0
