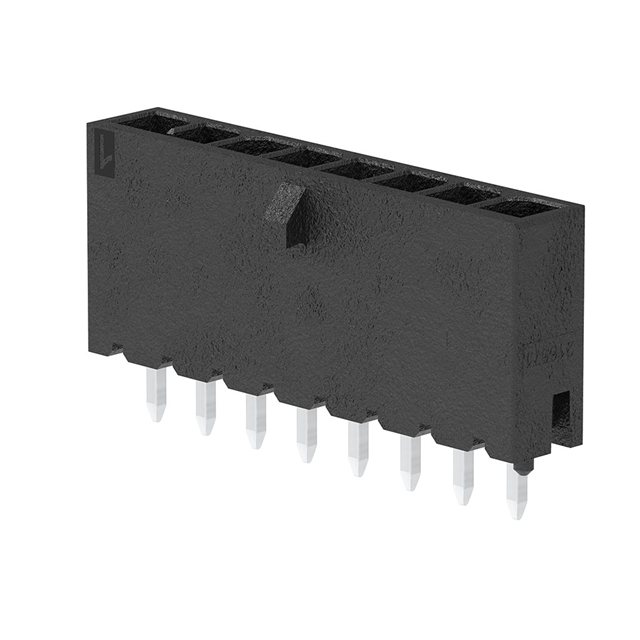

2165711008

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Minimum Operating Temperature :

- 40 C

Mated Stacking Heights :

-

Contact Length - Post :

0.125 (3.18mm)

Connector Type :

Header

Package :

Tray

Contact Finish - Post :

Tin

Contact Finish - Mating :

Tin

Type :

Micro-Fit PCB Headers

Fastening Type :

Locking Ramp

Maximum Operating Temperature :

+ 105 C

Contact Shape :

Square

Current Rating :

13 A

Housing Gender :

Receptacle

Packaging :

Tray

Series :

216571

Mounting Type :

Through Hole

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Housing Color :

Black

Contact Material :

COPPER ALLOY

Tradename :

Micro-Fit+

Insulation Resistance :

1000 MOhms

Termination Style :

Solder Pin

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.118 (3.00mm)

Insulation Height :

0.390 (9.91mm)

Style :

Board to Cable/Wire

Mounting Style :

PCB Mount

Termination :

Solder

Product Status :

Active

Applications :

-

Voltage Rating :

600 VAC/VDC

Base Product Number :

216571

Application :

Power, Wire-to-Board

Overall Contact Length :

-

Contact Plating :

Tin

Mounting Angle :

RIGHT ANGLE

Pitch :

3 mm

RoHS :

Details

Operating Temperature :

-40°C ~ 105°C

Contact Type :

Male Pin

Contact Finish Thickness - Mating :

-

Insulation Color :

Black

Contact Length - Mating :

-

Ingress Protection :

-

Current Rating (Amps) :

Varies by Wire Gauge

Shrouding :

Shrouded - 4 Wall

Product :

Headers

Number of Positions :

8 Position

Features :

Board Guide, Glow Wire Compliant

Housing Material :

Liquid Crystal Polymer (LCP)

Number of Rows :

1 Row

Number of Positions Loaded :

All

Contact Finish Thickness - Post :

-

Row Spacing - Mating :

-

Flammability Rating :

UL 94 V-0
