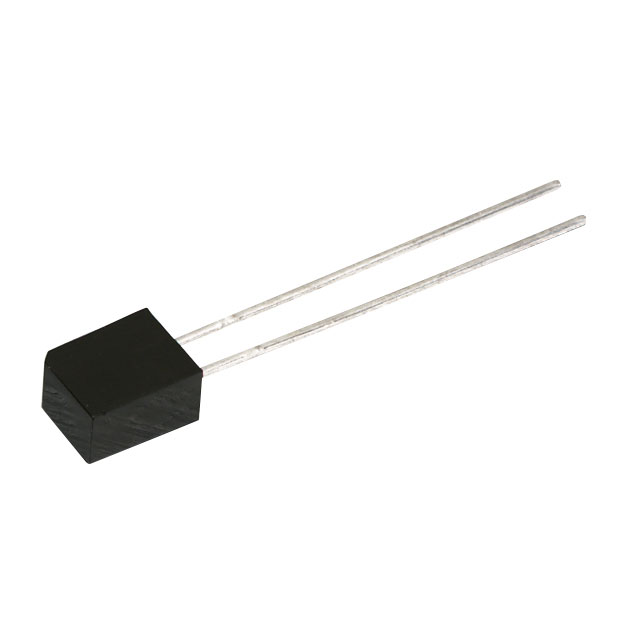

VTP100H
Or copy the link below:
- Mfr.Part #
- VTP100H
- Manufacturer
- Excelitas Technologies
- Package / Case
- Radial, Side View
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 925NM RADIAL
- Stock
- 47,811
- In Stock ：
- 47,811
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Excelitas Technologies
- Product Category :
- Optical Sensors - Photodiodes
- Operating Temperature :
- -40°C~100°C
- Factory Lead Time :
- 6 Weeks
- Infrared Range :
- yes
- Active Area :
- 7.45mm2
- Current - Dark (Typ) :
- 30nA
- Breakdown Voltage :
- 140V
- Optoelectronic Device Type :
- PIN PHOTODIODE
- Light Current-Nom :
- 0.055mA
- Viewing Angle :
- 140°
- Configuration :
- Single
- Dark Current :
- 30nA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Published :
- 2000
- Packaging :
- Bulk
- Semiconductor Material :
- SILICON
- Number of Pins :
- 2
- HTS Code :
- 8541.40.60.50
- Package / Case :
- Radial, Side View
- RoHS Status :
- RoHS Compliant
- Spectral Range :
- 725nm ~ 1150nm
- Reach Compliance Code :
- Unknown
- Wavelength - Peak :
- 925 nm
- Number of Functions :
- 1
- REACH SVHC :
- No SVHC
- Mount :
- Through Hole
- Shape :
- RECTANGULAR
- Datasheets
- VTP100H
Through Hole -40°C~100°C Bulk Radial, Side View 7.45mm2 30nA
VTP100H Overview
It is important to note that these photodiodes are packaged in Bulk to prevent damage. In order to ensure their safety, the photodiodes are packaged into Radial, Side View packages. 2 pins are present on the photodiodes. In order for photodiodes to function properly, the breakdown voltage must be 140V. In the absence of light input, a photodiode produces a 30nA current.
VTP100H Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 725nm ~ 1150nm
Viewing Angle: 140°
VTP100H Applications
There are a lot of Excelitas Technologies
VTP100H Photodiodes applications.
- Photo interrupters
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
