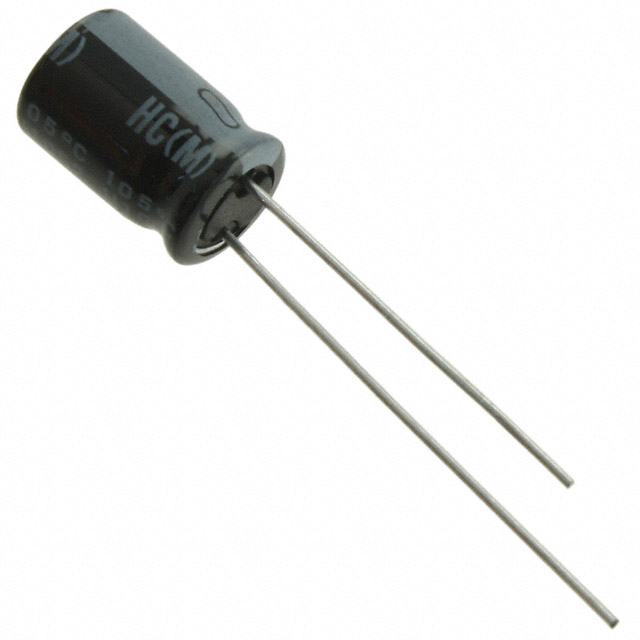

UHC1A331MPD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Diameter :

8mm

Packaging :

Bulk

Lead Spacing :

0.138 3.50mm

HTS Code :

8532.22.00

Terminal Pitch :

3.5mm

Ripple Current :

910mA

Leakage Current :

33μA

Mount :

Through Hole

Life (Hours) :

2000 hours

Termination :

Radial

Published :

2007

Polarization :

Polar

Number of Terminations :

2

Height :

11.5mm

Ripple Current @ High Frequency :

910mA @ 100kHz

Terminal Shape :

Wire

Capacitance :

330µF

Impedance :

43mOhm

Dissipation Factor :

0.13 %

ECCN Code :

EAR99

JESD-609 Code :

e3

Lead Pitch :

3.5052mm

Ripple Current @ Low Frequency :

427.7mA @ 120Hz

Size / Dimension :

0.315Dia 8.00mm

Lead Free :

Lead Free

Applications :

High Temperature Reflow

RoHS Status :

RoHS Compliant

Series :

UHC

Voltage - Rated DC :

10V

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Mounting Type :

Through Hole

Package / Case :

Radial, Can

Tolerance :

±20%

Operating Temperature :

-40°C~105°C

Lifetime @ Temp :

2000 Hrs @ 105°C

Moisture Sensitivity Level (MSL) :

Not Applicable

Dielectric Material :

Aluminium

Pbfree Code :

yes

Terminal Finish :

Matte Tin (Sn)

Height Seated (Max) :

0.453 11.50mm
