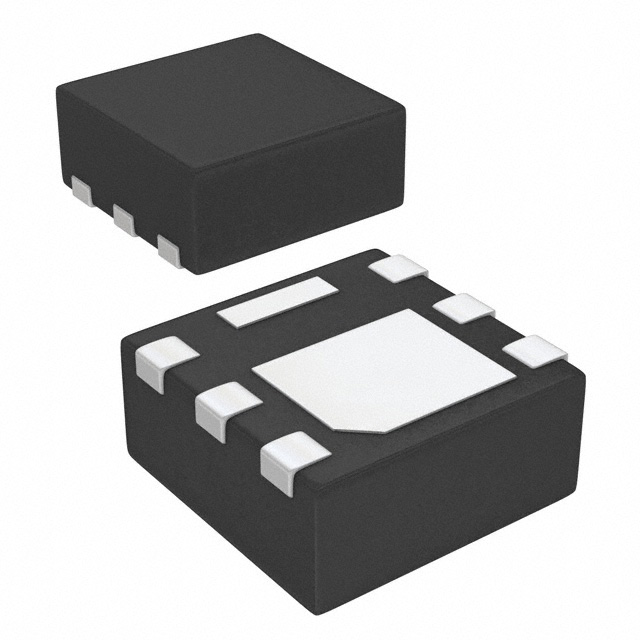

STL7N6F7
Or copy the link below:
- Mfr.Part #
- STL7N6F7
- Manufacturer
- STMicroelectronics
- Package / Case
- 6-PowerWDFN
- Datasheet
- Download
- Description
- MOSFET N-CH 60V 7A POWERFLAT
- Stock
- 13,074
- In Stock ：
- 13,074
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Mounting Type :
- Surface Mount
- Series :
- STripFET™
- Factory Lead Time :
- 22 Weeks
- Packaging :
- Tape and Reel (TR)
- Drain to Source Voltage (Vdss) :
- 60V
- FET Type :
- N-Channel
- Vgs (Max) :
- ±20V
- Current - Continuous Drain (Id) @ 25°C :
- 7A Tc
- RoHS Status :
- ROHS3 Compliant
- Vgs(th) (Max) @ Id :
- 4V @ 250µA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Base Part Number :
- STL7
- Operating Temperature :
- -55°C~150°C TJ
- Gate Charge (Qg) (Max) @ Vgs :
- 8nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds :
- 450pF @ 25V
- Rds On (Max) @ Id, Vgs :
- 25m Ω @ 3.5A, 10V
- Lead Free :
- Lead Free
- Drive Voltage (Max Rds On,Min Rds On) :
- 10V
- Power Dissipation-Max :
- 2.4W Ta
- Package / Case :
- 6-PowerWDFN
- Datasheets
- STL7N6F7
N-Channel Tape & Reel (TR) 25m Ω @ 3.5A, 10V ±20V 450pF @ 25V 8nC @ 10V 60V 6-PowerWDFN
STL7N6F7 is an N-channel Power MOSFET made by STMicroelectronics. And the main parameters of this part is: Power MOSFET, N Channel, 60 V, 7 A, 0.021 ohm, PowerFLAT. The N-channel Power MOSFET STL7N6F7 utilizes STripFETTM F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
STL7N6F7 Features
Among the lowest RDS(on) on the market
Excellent FoM (figure of merit)
Low Crss/Ciss ratio for EMI immunity
High avalanche ruggedness
Power Dissipation: 2.4W
STL7N6F7 Applications
indoor alarm systems
laptops to switch ON or OFF the screen
washing machines
conveyors in industries
Telecommunication
