SMCJ48A

Share

Or copy the link below:

Mfr.Part #
SMCJ48A
Manufacturer
MDD
Package / Case
DO-214AB, SMC
Datasheet
Download
Description
TVS DIODE 48VWM 77.4VC SMC
Stock
5,955
In Stock :
5,955

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
MDD
Product Category :
Mount :
Surface Mount
Clamping Voltage :
77.4V
Number of Elements :
1
Diode Element Material :
SILICON
Reverse Standoff Voltage :
48V
Series :
SMCJ
Breakdown Voltage :
53.3V
Number of Terminations :
2
Voltage - Clamping (Max) @ Ipp :
77.4V
Peak Pulse Power :
1.5kW
Peak Pulse Current :
19.4A
Packaging :
Cut Tape (CT)
Leakage Current :
5μA
Number of Pins :
2
Max Surge Current :
200A
Published :
2010
Power Line Protection :
No
Type :
Zener
Package / Case :
DO-214AB, SMC
Pbfree Code :
yes
RoHS Status :
ROHS3 Compliant
Terminal Position :
Dual
Peak Reflow Temperature (Cel) :
260
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Applications :
GENERAL PURPOSE
Termination :
SMD/SMT
Reverse Breakdown Voltage :
53.3V
Base Part Number :
SMCJ48
JESD-609 Code :
e3
Operating Supply Voltage :
3.5V
Terminal Form :
C BEND
Direction :
Unidirectional
Test Current :
1mA
Mounting Type :
Surface Mount
Time@Peak Reflow Temperature-Max (s) :
30
Max Reverse Leakage Current :
5μA
Element Configuration :
Single
Pin Count :
2
ECCN Code :
EAR99
Factory Lead Time :
14 Weeks
Terminal Finish :
Matte Tin (Sn)
Operating Temperature :
-55°C~150°C TJ
Power - Peak Pulse :
1500W 1.5kW
Introducing MDD SMCJ48A from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:2, Number of Pins:2, Type:Zener, Package / Case:DO-214AB, SMC, Base Part Number:SMCJ48, Mounting Type:Surface Mount, Operating Temperature:-55°C~150°C TJ, SMCJ48A pinout, SMCJ48A datasheet PDF, SMCJ48A amp .Beyond MDD SMCJ48A ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

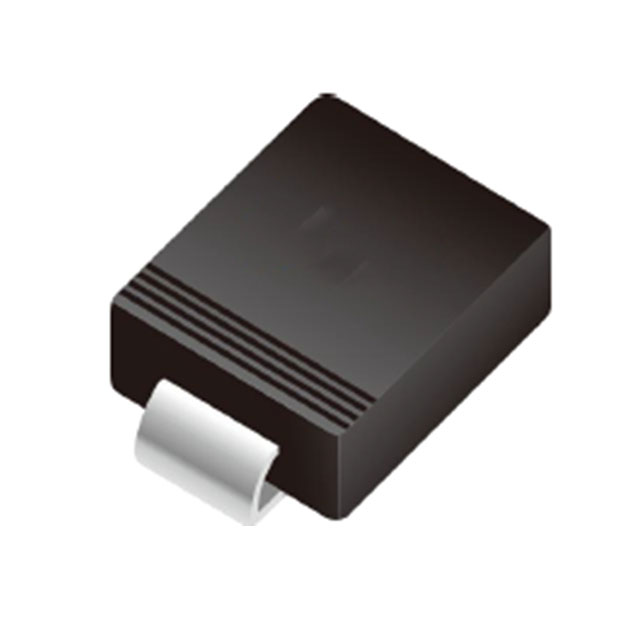

MDD SMCJ48A


SMCJ48A datasheet pdf and TVS - Diodes product details from Bourns Inc. stock available at Xinshop
