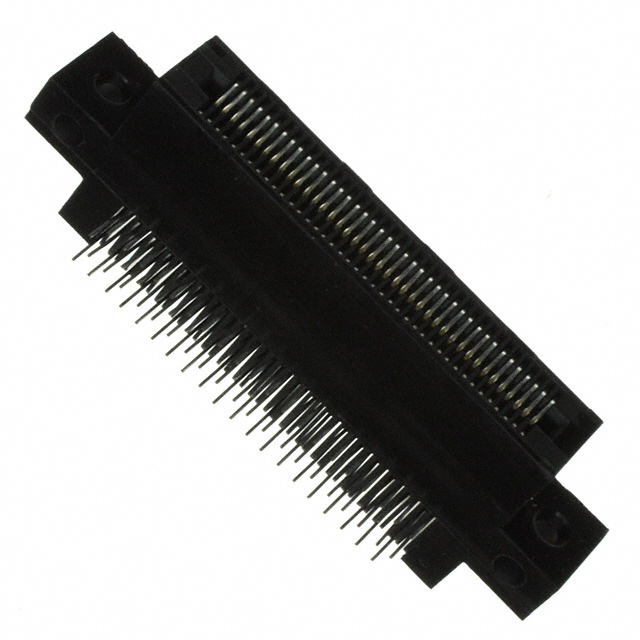

RZE40DHAS
Or copy the link below:
- Mfr.Part #
- RZE40DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.039
- Stock
- 39,659
- In Stock ：
- 39,659
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Card Type :
- Non Specified - Dual Edge
- Contact Plating :
- Gold
- Connector Type :
- Hairpin Bellows
- Contact Finish :
- Gold
- Max Operating Temperature :
- 125°C
- Height :
- 9.14mm
- Gender :
- FEMALE
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Number of Rows :
- 2
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Pitch :
- 0.039 1.00mm
- Mounting Type :
- Through Hole, Right Angle
- Color :
- Black
- Lead Free :
- Contains Lead
- Min Operating Temperature :
- -65°C
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- Non-RoHS Compliant
- Read Out :
- Dual
- Card Thickness :
- 0.062 1.57mm
- Housing Material :
- Plastic
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Published :
- 2003
- Length :
- 63.1mm
- Width :
- 9.4mm
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Solder, Staggered
- Mount :
- Through Hole
- Contact Type :
- Hairpin Bellows
- Number of Positions :
- 80
- Contact Material :
- Phosphor Bronze
- Number of Positions/Bay/Row :
- 40
- Datasheets
- RZE40DHAS
RZE40DHAS Documents
Female Black 0.039 1.00mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 80 Positions Polyphenylene Sulfide (PPS)
RZE40DHAS Overview
Material was packaged in accordance with Tray's specifications.It's recommended to mount type Through Hole, Right Angle.The device is connected via the connector socket Hairpin Bellows.It is possible to maintain stable operation at a temperature of 125°C°C.Ensure its reliability by working at a minimum temperature of -65°C degrees Celsius.
RZE40DHAS Features
RZE40DHAS Applications
There are a lot of Sullins Connector Solutions
RZE40DHAS Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
