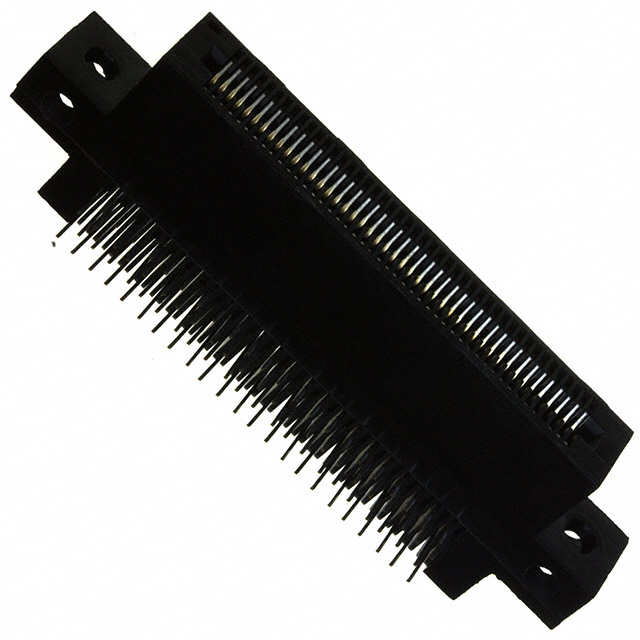

RZE45DHAS
Or copy the link below:
- Mfr.Part #
- RZE45DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 90POS 0.039
- Stock
- 44,735
- In Stock ：
- 44,735
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Packaging :
- Tray
- Number of Rows :
- 2
- Height :
- 9.14mm
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Body Depth :
- 0.86 inch
- Card Type :
- Non Specified - Dual Edge
- Number of Positions/Bay/Row :
- 45
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Connector Type :
- Hairpin Bellows
- Lead Free :
- Contains Lead
- Total Number of Contacts :
- 90
- Contact Material :
- Phosphor Bronze
- Read Out :
- Dual
- Rated Current (Signal) :
- 1A
- Flammability Rating :
- UL94 V-0
- Card Thickness :
- 0.062 1.57mm
- Contact Type :
- Hairpin Bellows
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- RoHS Status :
- Non-RoHS Compliant
- Plating Thickness :
- 10μin
- Mounting Type :
- Through Hole, Right Angle
- Insertion Force-Max :
- 1.668 N
- Reference Standard :
- UL
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Operating Temperature :
- -65°C~125°C
- Length :
- 68.1mm
- Pitch :
- 0.039 1.00mm
- Width :
- 9.4mm
- Termination :
- Solder, Staggered
- Insulation Resistance :
- 1000000000Ohm
- Number Of PCB Rows :
- 4
- Housing Material :
- Plastic
- Gender :
- FEMALE
- Number of Conductors :
- ONE
- Mount :
- Through Hole
- Body Breadth :
- 0.37 inch
- Published :
- 2006
- Color :
- Black
- Contact Finish :
- Gold
- Reliability :
- COMMERCIAL
- Number of Positions :
- 90
- Datasheets
- RZE45DHAS
RZE45DHAS Documents
Female Black 0.039 1.00mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 90 Positions Polyphenylene Sulfide (PPS)
RZE45DHAS Overview
The material was packaged according to the specifications of Tray.It's recommended you mount it type Through Hole, Right Angle.This device is connected through the connector socket Hairpin Bellows.
RZE45DHAS Features
RZE45DHAS Applications
There are a lot of Sullins Connector Solutions
RZE45DHAS Edgeboard Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
