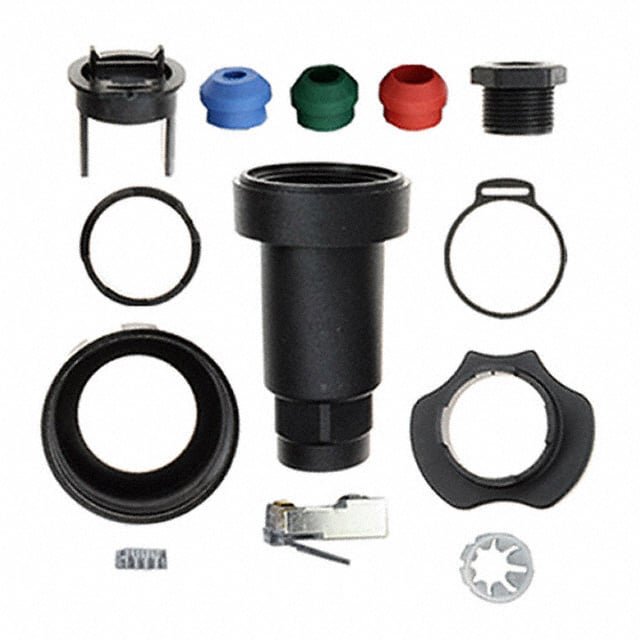

PX0834/B

Manufacturer :

Bulgin

Product Category :

Modular Connector Plugs

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Number of Positions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Cable Type :

Round Cable, Stranded Wires

Contact Material :

Phosphor Bronze

Pbfree Code :

yes

Ingress Protection :

IP68 - Dust Tight, Waterproof

Color :

Translucent - Clear

MIL Conformance :

No

Mixed Contacts :

No

Current Rating :

30A

Series :

Ethernet Buccaneer®

JESD-609 Code :

e4

Shell Material :

Polycarbonate

Diameter :

38.1mm

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Packaging :

Bulk

Number of Pins :

8

Total Number of Contacts :

8

Filter Feature :

No

Termination :

IDC

Feature :

Circular Threaded Coupling

Shielding :

Shielded

Contact Plating :

Gold

Ratings :

Cat5e

IEC Conformance :

No

DIN Conformance :

No

Gender :

FEMALE

Voltage - Rated AC :

30V

Factory Lead Time :

20 Weeks

Empty Shell :

No

Option :

WITH CABLE ASSEMBLY

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Length :

3.051 77.50mm

UL Flammability Code :

94V-0

Housing Material :

Polyamide

Voltage - Rated DC :

30V

Connector Type :

PLUG

Published :

2003
