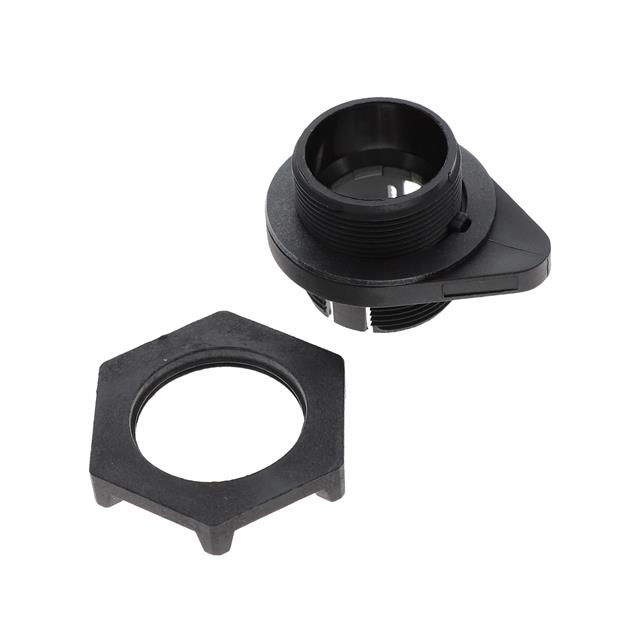

PX0802
Or copy the link below:
- Mfr.Part #
- PX0802
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- CONN INSERT SHELL PANEL MNT
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Circular Connector Housings
- Orientation :
- Straight
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Gender :
- Receptacle
- Total Number of Contacts :
- 3
- Series :
- Buccaneer®, Mini
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Resistance :
- 5mOhm
- Contact Plating :
- Gold
- Width :
- 40.5mm
- Mains Connector Rating :
- 5A, 380VAC
- RoHS Status :
- ROHS3 Compliant
- Housing Color :
- Black
- Note :
- Contacts Not Included; Insert Not Included
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Insulation Resistance :
- 10 TΩ
- Operating Temperature :
- -20°C~70°C
- REACH SVHC :
- No SVHC
- Contact Finish - Mating :
- NOT SPECIFIED
- Shell Material :
- Polyamide (PA), Nylon
- Connector Type :
- Insert Shell
- Shielding :
- Unshielded
- Mounting Type :
- Panel Mount
- Voltage - Rated AC :
- 380V
- Current Rating :
- 5A
- Mating Information :
- PX0800
- Material Flammability Rating :
- UL94 V-0
- Published :
- 1997
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- MIL Conformance :
- No
- Additional Feature :
- STANDARD: UL 94V-0
- Breakdown Voltage :
- 2kV
- IEC Conformance :
- No
- Termination Type :
- Screw
- Factory Lead Time :
- 20 Weeks
- Contact Material :
- Copper
- Fastening Type :
- Threaded
- Datasheets
- PX0802
PX0802 Documents
Insert Shell Polyamide (PA), Nylon Panel Mount Bulk Threaded Unshielded Contacts Not Included; Insert Not Included Buccaneer®, Mini
PX0802 Overview
Packaging for this item is Insert Shell.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buccaneer®, Mini Series.Moreover, there are a number of other features, including STANDARD: UL 94V-0, to name just a few.
PX0802 Features
Buccaneer®, Mini series
PX0802 Applications
There are a lot of Bulgin
PX0802 Circular Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
