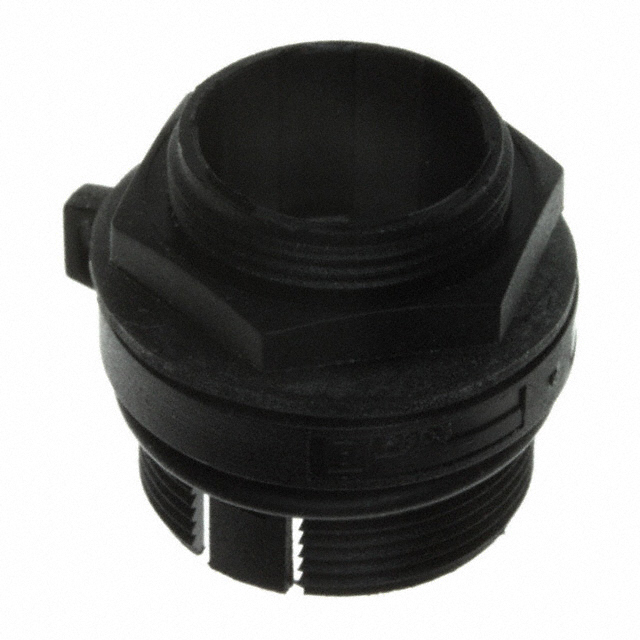

PX0805
Or copy the link below:
- Mfr.Part #
- PX0805
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- CONN INSERT SHELL PANEL MNT
- Stock
- 529
- In Stock ：
- 529
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Circular Connector Housings
- Mains Connector Rating :
- 5A, 380VAC
- Voltage - Rated AC :
- 380V
- Orientation :
- Straight
- Published :
- 1997
- Series :
- Buccaneer®, Mini
- Shell Material :
- Polyamide (PA), Nylon
- Contact Material :
- Copper
- Fastening Type :
- Threaded
- RoHS Status :
- ROHS3 Compliant
- Insulation Resistance :
- 10 TΩ
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mating Information :
- PX0800
- Option :
- GENERAL PURPOSE
- Contact Finish Termination :
- Nickel
- Contact Plating :
- Gold
- IEC Conformance :
- No
- DIN Conformance :
- No
- Connector Type :
- Insert Shell
- Total Number of Contacts :
- 8
- Pbfree Code :
- yes
- Additional Feature :
- STANDARD: UL 94V-0
- Operating Temperature :
- -20°C~70°C
- Termination Type :
- Screw
- MIL Conformance :
- No
- Contact Resistance :
- 5mOhm
- Packaging :
- Bulk
- Contact Gender :
- Male
- Current Rating :
- 5A
- Housing Color :
- Black
- Note :
- Contacts Not Included; Insert Not Included
- Mounting Type :
- Panel Mount
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 20 Weeks
- Shielding :
- Unshielded
- Contact Finish - Mating :
- Nickel
- Breakdown Voltage :
- 2kV
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Housing Material :
- Polyamide
- Datasheets
- PX0805
Insert Shell Polyamide (PA), Nylon Panel Mount Bulk Threaded Unshielded Contacts Not Included; Insert Not Included Buccaneer®, Mini
PX0805 Overview
The product comes in a package of Insert Shell.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buccaneer®, Mini Series.Among other features are STANDARD: UL 94V-0, to name only a few.
PX0805 Features
Buccaneer®, Mini series
PX0805 Applications
There are a lot of Bulgin
PX0805 Circular Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
