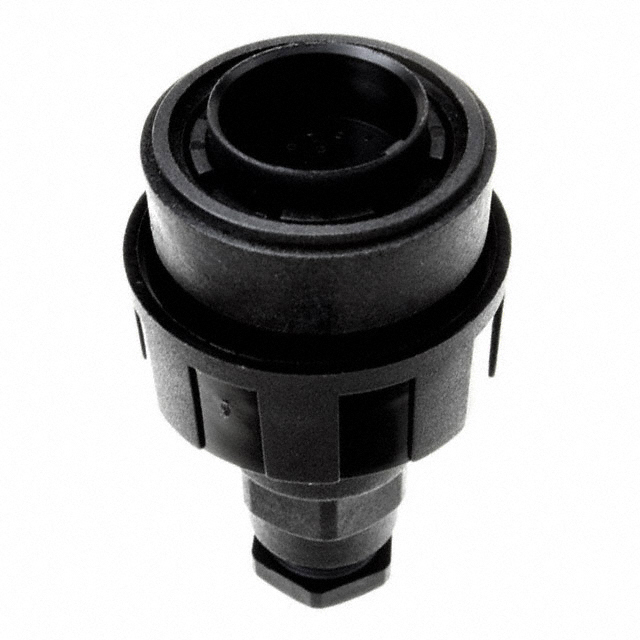

PX0820/P
Or copy the link below:
- Mfr.Part #
- PX0820/P
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- CONN PLG HSG MALE 25POS INLINE
- Stock
- 281
- In Stock ：
- 281
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Circular Connector Housings
- Published :
- 2001
- Outside Diameter :
- 38.1 mm
- MIL Conformance :
- No
- Orientation :
- Keyed
- Insert Material :
- Polyamide (PA), Nylon
- Connector Type :
- Plug Housing
- Termination :
- Crimp
- Plating :
- Gold, Polyamide
- Option :
- GENERAL PURPOSE
- Length :
- 69mm
- HTS Code :
- 8536.69.40.30
- Max Current Rating :
- 1A
- Number of Terminations :
- 25
- Mount :
- Cable, Free Hanging
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- Body Material :
- Glass, Nylon, Polyamide
- Factory Lead Time :
- 20 Weeks
- Fastening Type :
- Threaded
- Operating Temperature :
- -20°C~70°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Type :
- Crimp and Solder Cup
- Series :
- Buccaneer®, Standard
- Contact Material :
- Copper
- Current Rating :
- 1A
- Approval Agency :
- CSA, UL, VDE
- Housing Color :
- Black
- DIN Conformance :
- No
- Wire/Cable Diameter :
- 9 mm
- Voltage - Rated AC :
- 50V
- Ratings :
- Dust Tight, IP68, Waterproof
- Insulation Resistance :
- 100MOhm
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Material Flammability Rating :
- UL94 HB
- Includes :
- 6 pcs - 1 Connector, 1 Backshell, 1 Cage Clamp, 1 Gland, 1 Locking Ring, 1 Nut
- Flammability Rating :
- UL94 HB
- ECCN Code :
- EAR99
- Width :
- 38.1mm
- Contact Resistance :
- 5mOhm
- Shielding :
- Unshielded
- Number of Positions :
- 25 (Power)
- Contact Gender :
- Male
- Contact Plating :
- Gold
- Packaging :
- Bulk
- Number of Ports :
- 1
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Shape :
- Circular
- Feature :
- Backshell, Coupling Nut
- Radiation Hardening :
- No
- IEC Conformance :
- No
- REACH SVHC :
- No SVHC
- Note :
- Contacts Not Included
- Total Number of Contacts :
- 25
- Working Voltage :
- 50V
- Wire/Cable Gauge :
- 24 AWG
- Voltage - Rated DC :
- 50V
- Max Voltage Rating (DC) :
- 5.05kV
- Type :
- For Male Pins
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- PX0820/P
PX0820/P Documents
Plug Housing Polyamide (PA), Nylon, Glass Filled Free Hanging (In-Line) 25 (Power) Positions Bulk Threaded Unshielded Contacts Not Included Buccaneer®, Standard
PX0820/P Overview
This product is packaged in a Plug Housing cartonThis device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.Buccaneer®, Standard Series product.It's got a lot of benefits in common with other For Male Pins products.Maintaining Backshell, Coupling Nut when operating is easy.For mounting, you need a Cable, Free Hanging socket.For managing a variety of tasks, it has 1 ports.A 25 termination ends a transmission line with a device that matches its characteristic impedance.
PX0820/P Features
25 basic kinds of terminations
Buccaneer®, Standard series
PX0820/P Applications
There are a lot of Bulgin
PX0820/P Circular Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
