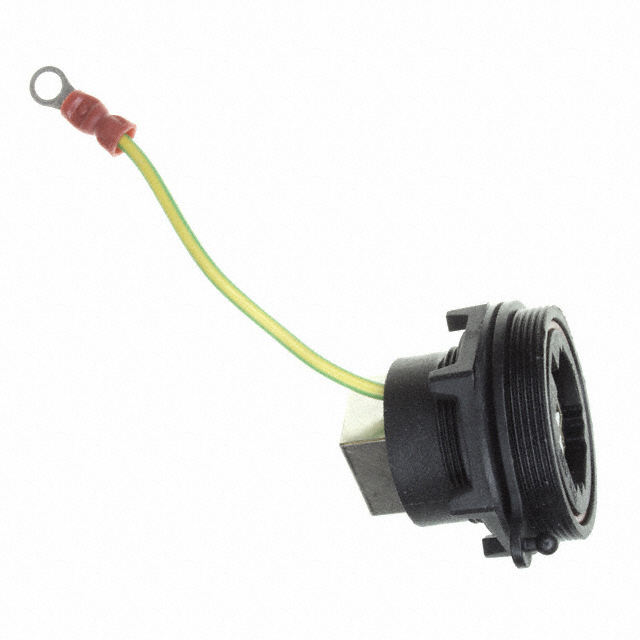

PX0833/E

Manufacturer :

Bulgin

Product Category :

Modular Connector Adapters

Type :

Coupler

Convert From (Adapter End) :

Jack, 8p8c (RJ45)

Filter Feature :

No

Max Voltage Rating (DC) :

4.23kV

Series :

Ethernet Buccaneer®

Total Number of Contacts :

8

MIL Conformance :

No

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

22 Weeks

Empty Shell :

No

Flammability Rating :

UL94 V-0

Contact Finish Thickness :

50.0μin 1.27μm

Ratings :

Cat5e

Contact Material :

Phosphor Bronze

Current Rating :

1.5A

Weight :

20.865249g

Height :

31.75mm

REACH SVHC :

No SVHC

Shielding :

Shielded

Ingress Protection :

IP68 - Dust Tight, Waterproof

Termination :

IDC

Mounting Type :

Panel Mount

Pbfree Code :

yes

Contact Gender :

FEMALE

Published :

2010

IEC Conformance :

No

Length :

38.1mm

Width :

31.75mm

Gender :

Receptacle

Orientation :

Straight

Number of Ports :

1

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material, Finish :

Polyester

Color :

Black

Operating Temperature :

-40°C~70°C

Contact Finish :

Gold

Voltage - Rated :

30V

DIN Conformance :

No

Cable Length :

800mm

Connector Type :

RJ45

Number of Positions Loaded :

8

Convert To (Adapter End) :

Jack, 8p8c (RJ45)

Max Current Rating :

1.5A

Housing Material :

Acrylonitrile Butadiene Styrene (ABS)

Mount :

Cable, Panel

Voltage - Rated AC :

714mV

Feature :

Circular Threaded Coupling

Max Voltage Rating (AC) :

30V
