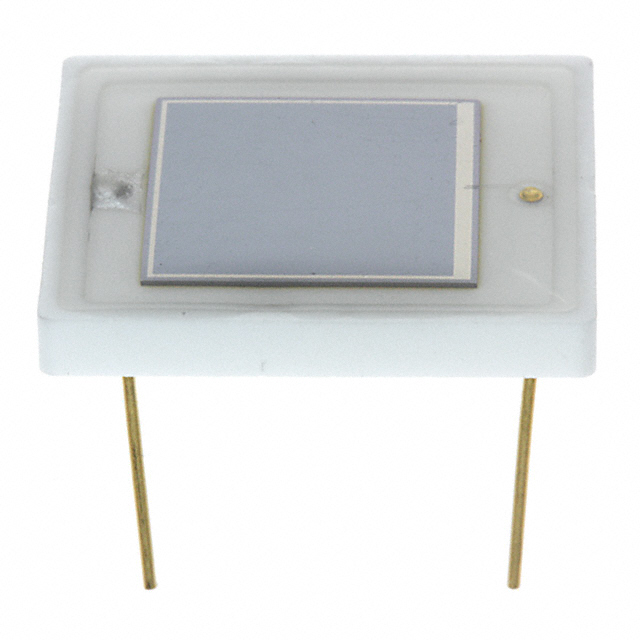

PDB-V110
Or copy the link below:
- Mfr.Part #
- PDB-V110
- Manufacturer
- Advanced Photonix
- Package / Case
- Radial
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 950NM RADIAL
- Stock
- 40,046
- In Stock ：
- 40,046
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Advanced Photonix
- Product Category :
- Optical Sensors - Photodiodes
- Length :
- 16.5mm
- Operating Temperature :
- -40°C~60°C
- Housing Material :
- Ceramic
- RoHS Status :
- RoHS Compliant
- Responsivity @ nm :
- 0.17 A/W @ 450nm
- Breakdown Voltage :
- 30V
- Packaging :
- Bulk
- Spectral Range :
- 350nm ~ 1100nm
- Max Reverse Voltage (DC) :
- 75V
- Voltage - DC Reverse (Vr) (Max) :
- 75V
- Lead Length :
- 12.7mm
- Lead Free :
- Lead Free
- Response Time :
- 13ns
- Max Operating Temperature :
- 60°C
- Published :
- 2005
- Min Operating Temperature :
- -40°C
- Active Area :
- 93.54mm2
- Mounting Type :
- Through Hole
- Color - Enhanced :
- Blue
- Viewing Angle :
- 120°
- Dark Current :
- 200pA
- Rise Time :
- 2μs
- Wavelength :
- 950nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diode Type :
- Pin
- Package / Case :
- Radial
- Current - Dark (Typ) :
- 200pA
- Height :
- 2.03mm
- Factory Lead Time :
- 14 Weeks
- Width :
- 15mm
- Datasheets
- PDB-V110
Through Hole -40°C~60°C Bulk Wavelength: 950nm Radial 75V 93.54mm2 13ns 200pA
PDB-V110 Overview
In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into Radial packages in order to protect them from damage. A continuous reverse-bias mode can only sustain 75V voltage per photodiode. Continuously reverse-bias the photodiodes shouldn't exceed 75V. In order for photodiodes to function, the temperature must not exceed 60°C. However, the minimum operating temperature of the photodiodes should be set to -40°C. For photodiodes to work, breakdown voltage should be 30V. Without light, a photodiode has 200pA current.
PDB-V110 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~60°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 120°
Responsivity @ nm: 0.17 A/W @ 450nm
PDB-V110 Applications
There are a lot of Advanced Photonix
PDB-V110 Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
