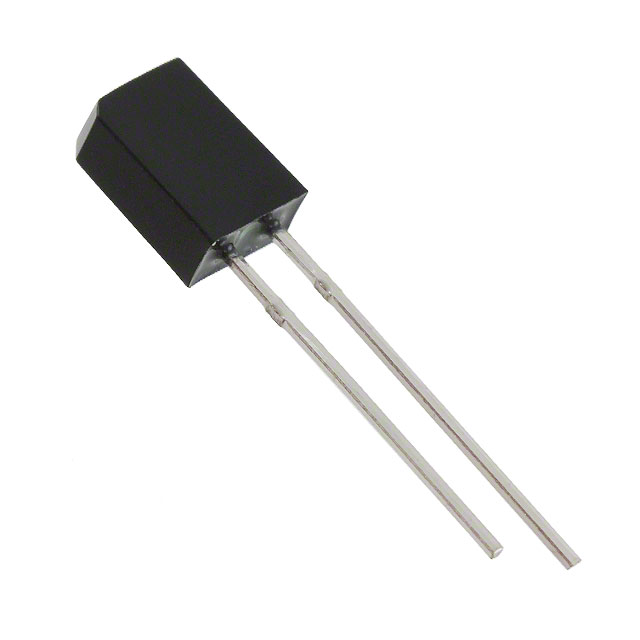

PD638B
Or copy the link below:
- Mfr.Part #
- PD638B
- Manufacturer
- Everlight Electronics
- Package / Case
- Radial
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM RADIAL
- Stock
- 319
- In Stock ：
- 319
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Semiconductor Material :
- SILICON
- Published :
- 2005
- Number of Pins :
- 2
- Infrared Range :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8541.40.60.50
- Additional Feature :
- Side View
- Lead Free :
- Lead Free
- Pbfree Code :
- yes
- Diode Type :
- Pin
- Dark Current :
- 5nA
- Voltage - DC Reverse (Vr) (Max) :
- 170V
- Factory Lead Time :
- 15 Weeks
- Shape :
- RECTANGULAR
- Number of Functions :
- 1
- Mount :
- Through Hole
- Size :
- 7.6mm
- Light Current-Nom :
- 0.018mA
- Configuration :
- Single
- Spectral Range :
- 840nm ~ 1100nm
- Response Time :
- 50ns
- RoHS Status :
- ROHS3 Compliant
- Max Reverse Voltage (DC) :
- 170V
- Packaging :
- Bulk
- Wavelength :
- 940nm
- Package / Case :
- Radial
- Operating Temperature :
- -40°C~85°C
- Datasheets
- PD638B
Through Hole -40°C~85°C Bulk Wavelength: 940nm Radial 170V 50ns 5nA
PD638B Overview
In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into Radial packages in order to protect them from damage. A continuous reverse-bias mode can only sustain 170V voltage per photodiode. Continuously reverse-bias the photodiodes shouldn't exceed 170V. It has 2 pins for the photodiodes. Without light, a photodiode has 5nA current.
PD638B Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 840nm ~ 1100nm
Response Time: 50ns
PD638B Applications
There are a lot of Everlight Electronics Co Ltd
PD638B Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
