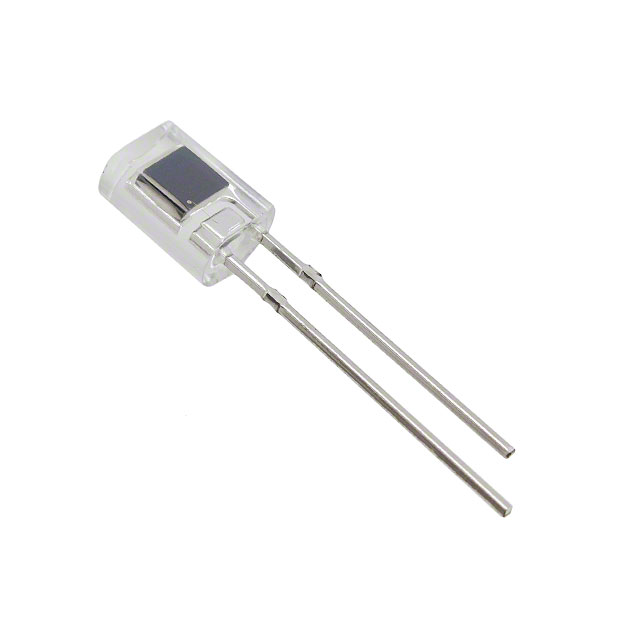

PD438C/S46
Or copy the link below:
- Mfr.Part #
- PD438C/S46
- Manufacturer
- Everlight Electronics
- Package / Case
- TO-226-2, TO-92-2 Long Body
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM TO226-2
- Stock
- 1,205
- In Stock ：
- 1,205
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Configuration :
- Single
- Infrared Range :
- yes
- HTS Code :
- 8541.40.60.50
- Spectral Range :
- 840nm ~ 1100nm
- Operating Temperature :
- -40°C~85°C
- Factory Lead Time :
- 15 Weeks
- Number of Pins :
- 2
- Mounting Type :
- Through Hole
- Dark Current :
- 5nA
- Max Power Dissipation :
- 150mW
- Size :
- 4.8mm
- Diode Type :
- Pin
- Fall Time (Typ) :
- 50 ns
- RoHS Status :
- ROHS3 Compliant
- Reverse Voltage (DC) :
- 32V
- Shape :
- Cylindrical
- Published :
- 2005
- Pbfree Code :
- yes
- Mount :
- Through Hole
- Light Current-Nom :
- 0.018mA
- Rise Time :
- 50ns
- Number of Functions :
- 1
- Packaging :
- Bulk
- Wavelength :
- 940nm
- Radiation Hardening :
- No
- Max Reverse Voltage (DC) :
- 170V
- Package / Case :
- TO-226-2, TO-92-2 Long Body
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lens Style :
- Clear
- Datasheets
- PD438C/S46
Through Hole -40°C~85°C Bulk Wavelength: 940nm TO-226-2, TO-92-2 Long Body 5nA
PD438C/S46 Overview
The photodiodes are packaged in the Bulk in order to prevent damage to them. To ensure safety, the photodiodes are packaged in TO-226-2, TO-92-2 Long Body packages. It is recommended that the photodiodes are maintained at a constant voltage of 170V in reverse-bias mode. Photodiodes have pins 2. For a circuit, the maximum heat released by the photodiodes should be 150mW. It is possible for the photodiodes in the DC circuit to operate under reverse voltage of 32V. The photodiode operates at 5nA current even in the absence of light input.
PD438C/S46 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 840nm ~ 1100nm
PD438C/S46 Applications
There are a lot of Everlight Electronics Co Ltd
PD438C/S46 Photodiodes applications.
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
- Pure UV-C Monitoring
- Sterilization Lamp Monitoring
