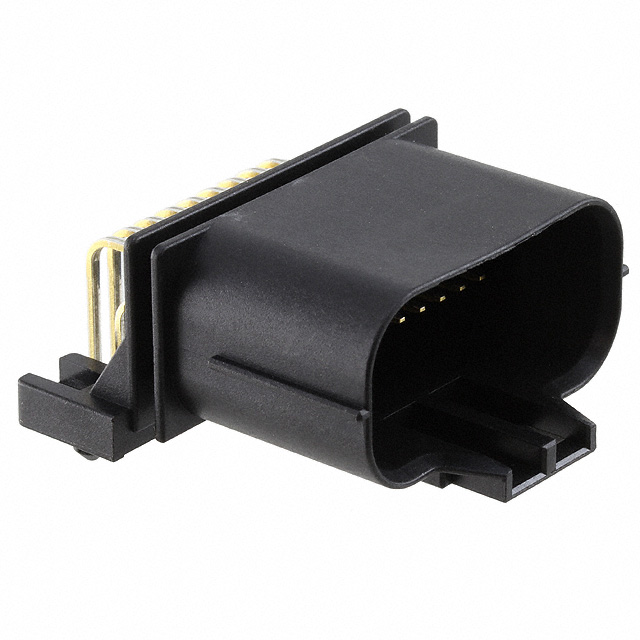

MX23A18NF2
Or copy the link below:
- Mfr.Part #
- MX23A18NF2
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 18POS 2.5MM
- Stock
- 208
- In Stock ：
- 208
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Series :
- MX23A
- Mount :
- Through Hole
- Row Spacing - Mating :
- 0.173 (4.40mm)
- Outside Diameter :
- 2.2 mm
- Applications :
- Automotive
- Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 14 Weeks
- Ingress Protection :
- Waterproof
- Feature :
- Board Guide
- Operating Temperature :
- -40°C~125°C
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Material :
- Brass
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Black
- Length :
- 34mm
- Shrouding :
- Shrouded - 4 Wall
- Wire Gauge (Max) :
- 16 AWG
- Insulation Height :
- 0.720 18.30mm
- Published :
- 2003
- Packaging :
- Tray
- Number of Positions :
- 18
- Current Rating :
- 3A
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- Fastening Type :
- Latch Holder
- Wire Gauge (Min) :
- 22 AWG
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Pitch - Mating :
- 0.098 2.50mm
- Material :
- PBT, Polybutylene
- Insulation Resistance :
- 100MOhm
- Contact Length - Post :
- 0.122 3.10mm
- Termination :
- Solder
- Datasheets
- MX23A18NF2
MX23A Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 18-Position Board to Cable/Wire 0.720 18.30mm Height
MX23A18NF2 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number MX23A belongs to the MX23A Series.In addition to Automotive, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~125°C.
