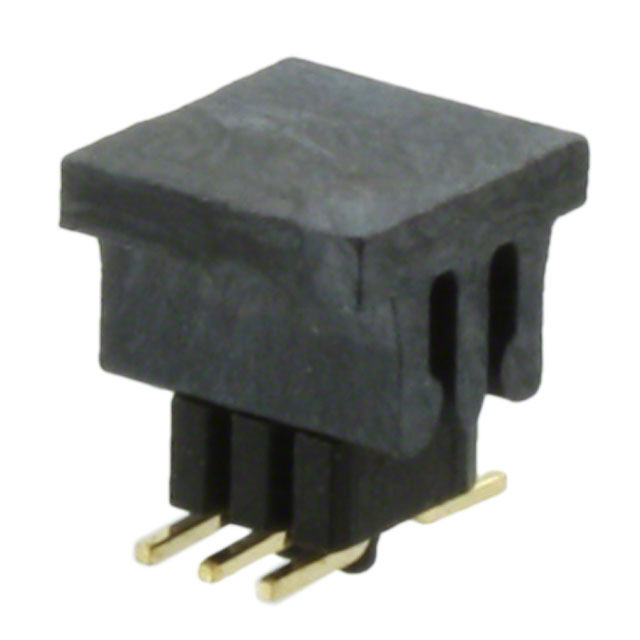

M40-3200345R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Feature :

Board Guide, Pick and Place

Contact Resistance :

30mOhm

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Radiation Hardening :

No

Contact Gender :

Male

Contact Finish - Mating :

Gold

Number Of PCB Rows :

2

Pbfree Code :

yes

Depth :

3.2mm

Durability :

300 Cycles

Terminal Pitch :

1mm

Series :

M40

Mount :

Surface Mount

Mating Contact Pitch :

0.039 inch

Row Spacing - Mating :

0.039 (1.00mm)

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

6

Orientation :

Straight

Contact Length - Mating :

0.071 1.80mm

Operating Temperature :

-40°C~105°C

REACH SVHC :

No SVHC

Insulation Material :

Polyamide (PA6T), Nylon 6T, Glass Filled

DIN Conformance :

No

Length :

3mm

Shrouding :

Unshrouded

Contact Material :

Brass

Mounting Type :

Surface Mount

Contact Shape :

Square

Additional Feature :

RoHS Compliant

Pitch - Mating :

0.039 1.00mm

Termination :

Solder

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Housing Material :

Thermoplastic

UL Flammability Code :

94V-0

Insulation Resistance :

1000000000Ohm

MIL Conformance :

No

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e4

Contact Finish Thickness - Mating :

Flash

Fastening Type :

Push-Pull

Number of Rows :

2

Number of Positions Loaded :

All

Housing Color :

Black

Reference Standard :

UL

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

IEC Conformance :

No

Number of Positions :

6

Factory Lead Time :

12 Weeks

Current Rating (Amps) :

1A

Published :

2011

Filter Feature :

No

Mixed Contacts :

No

Insulation Height :

0.059 1.50mm

Dielectric Withstanding Voltage :

500VAC V

Connector Type :

Header

Style :

Board to Board
