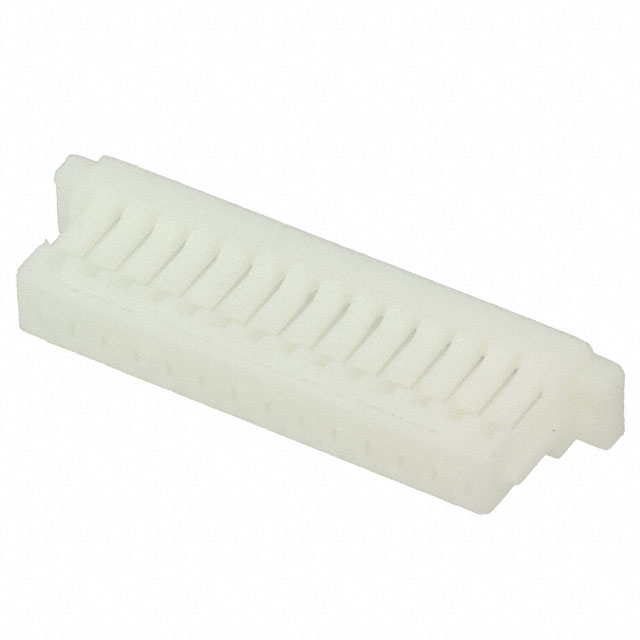

M40-1101400

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Contact Termination :

Crimp

Note :

Contacts Not Included

Total Number of Contacts :

14

Material :

Thermoplastic

Published :

2004

Pitch :

0.039 1.00mm

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Mount :

Cable, Free Hanging, PCB

Current Rating :

1A

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Body/Shell Style :

PLUG

Min Operating Temperature :

-25°C

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Housing Material :

PBT

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Number of Positions :

14

Connector Type :

Receptacle

Contact Resistance :

20mOhm

Length :

17mm

Contact Design :

PREASSEM CONN

Max Operating Temperature :

85°C

Width :

2.8mm

Mixed Contacts :

No

Number of Rows :

1

Series :

M40

Depth :

5mm

Insulation Resistance :

100MOhm

Package / Case :

SIL

Packaging :

Bulk

DIN Conformance :

No

Contact Type :

Female Socket

Rated Current (Signal) :

1A

Orientation :

Straight

REACH SVHC :

No SVHC

Factory Lead Time :

12 Weeks

Radiation Hardening :

No

Voltage - Rated AC :

50V

Dielectric Withstanding Voltage :

500VAC V

Option :

GENERAL PURPOSE

Mounting Type :

Free Hanging (In-Line)
